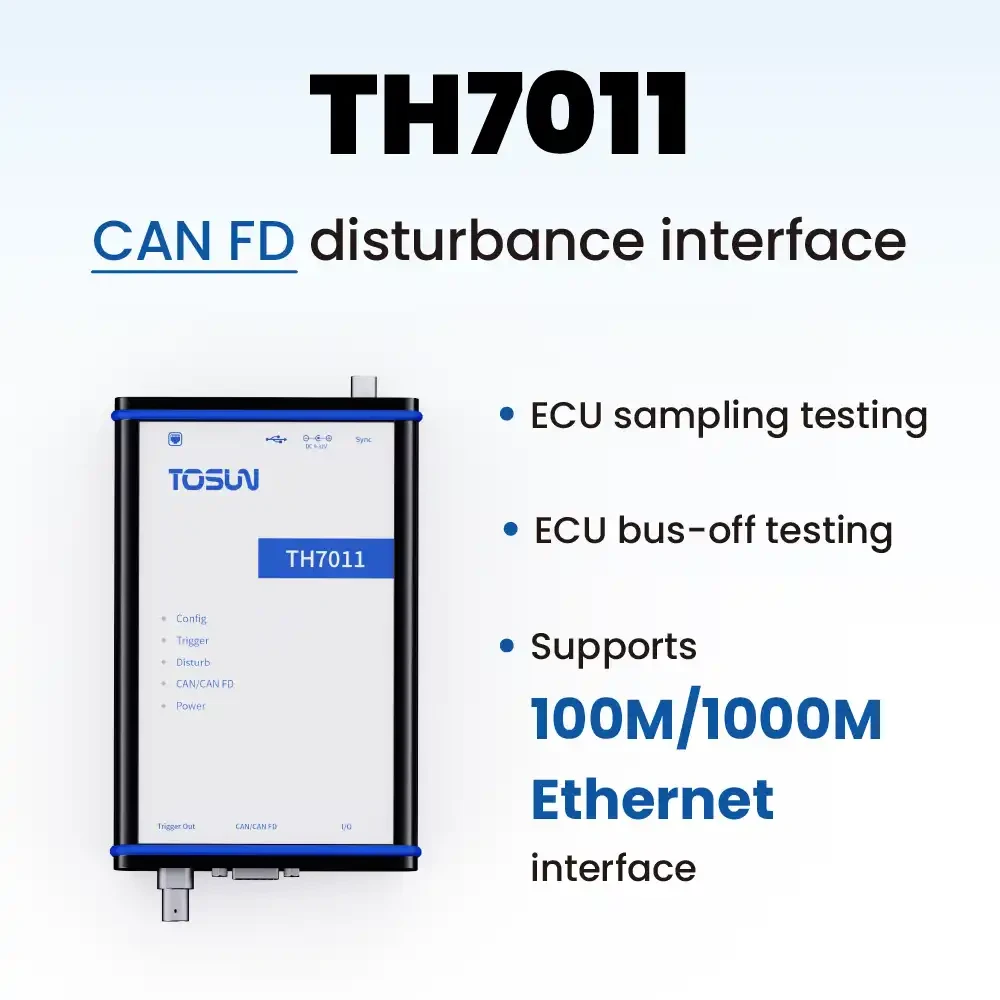

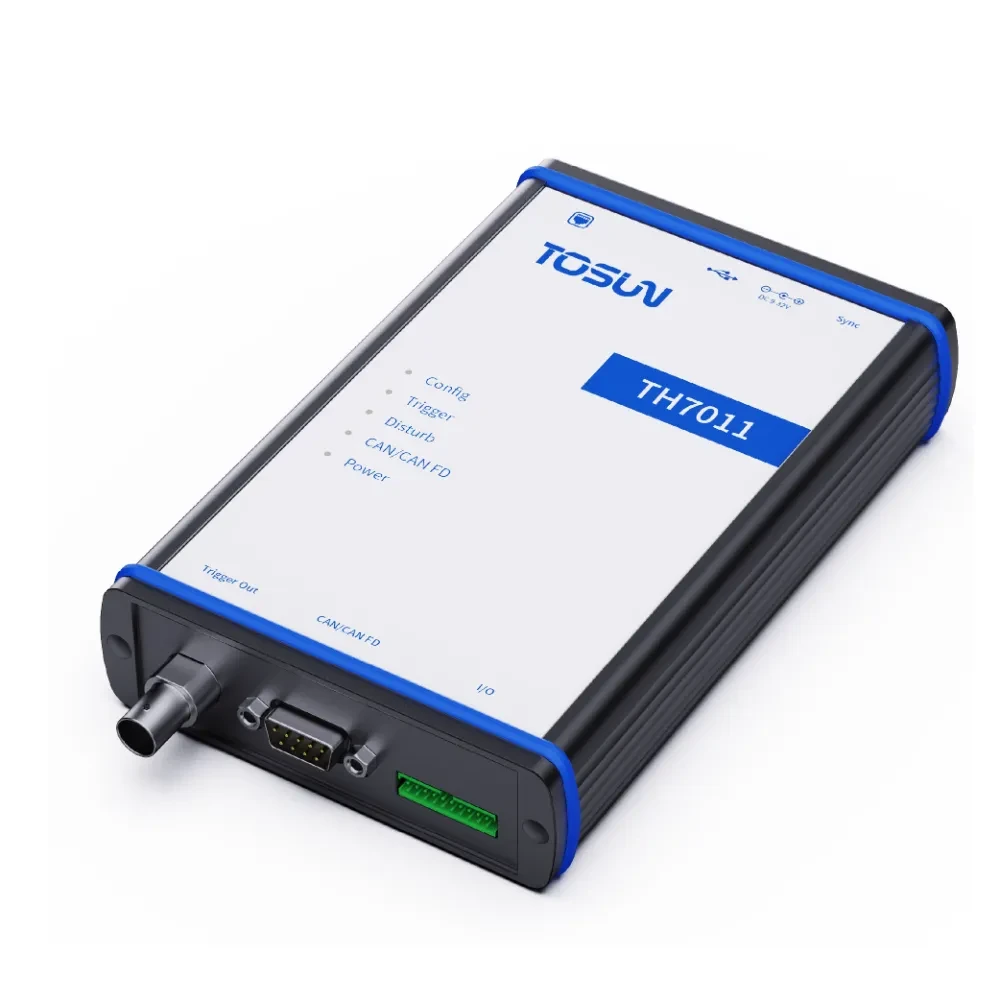

TH7011 - CAN(FD) Bus Interference Meter
The TH7011 is a tamper meter for conformance testing of CAN/CAN FD buses, mainly for digital tampering. When performing the conformance test, a simple test setup based on the host computer is all that is required, without additional special cables and CAN interfaces.
Description
- Supports USB power supply
- Supports USB and 100M/1000M Ethernet for upstream/downstream communication.
Features:
- Interferes with specific bit values of CAN/CAN FD messages; supports various trigger modes, such as software trigger, frame trigger, and error frame trigger
- Flexible definition of jamming sequences with an accuracy of 5ns and a theoretical upper limit length of 65536 jamming points, customized sequences or message sequences
- Support bit width deviation test, Bus-off state fast and slow recovery test, CAN_H, CAN_L ADC sampling waveform data storage and display, of which the sampling speed for dual-channel (CAN_H, CAN_L) 40M AD sampling points
- Scope Waveform Capture

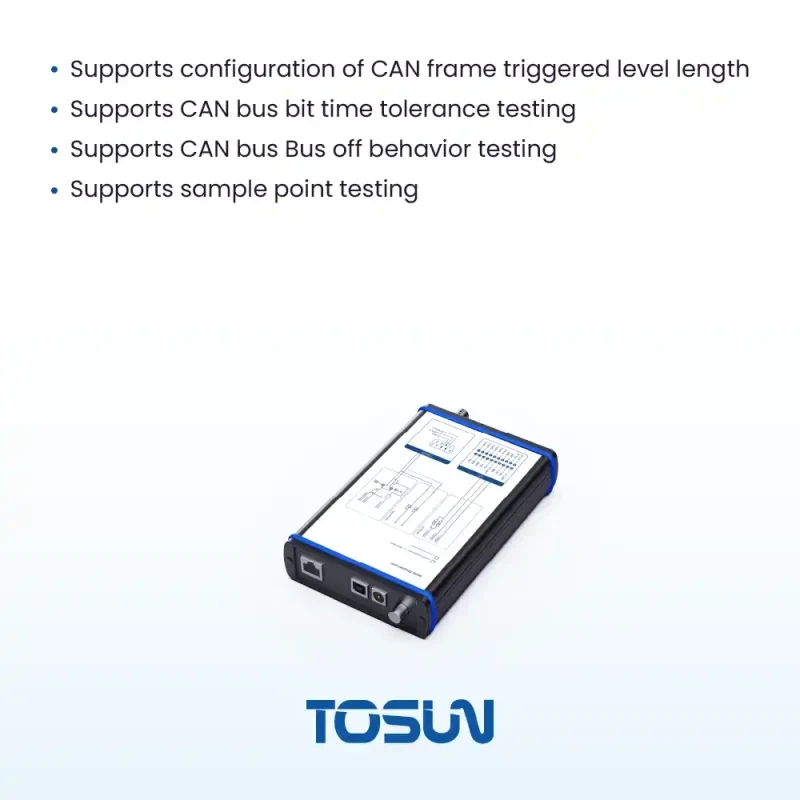

Typical applications.
- Sample point testing of ECUs
- ECU Bus-off Behavior Testing
- Frame jamming and frame triggering outputs
- Bit Width Tolerance Test
Download TH7011 - Datasheet Simplified Chinese
Download TH7011 - User's Manual Simplified Chinese
Download TH7011 - Datasheet English Version
Download TH7011 - UserManual English Version
