In response to the rapid development of the automotive industry, TOSUN has been actively launching new products to meet the market's continuous upgrading and diversified demand for automotive electronic basic tool chain products.TOSUN has recently launched another innovative CAN FD optical transceiver.

TO1013
01

Products

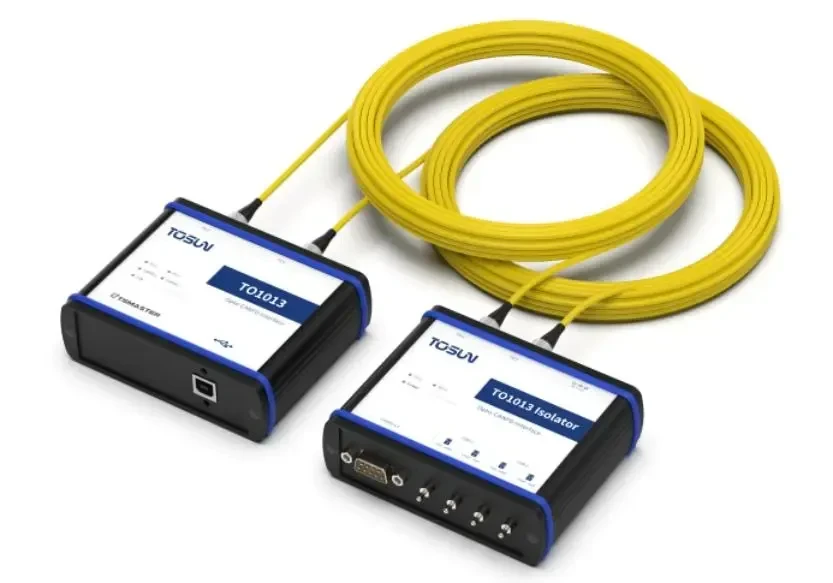

The TO1013 is an innovative CAN FD to fiber optic product that differs from traditional optical transceivers in the following waysOne end of the TO1013 can be directly linked to a PC via USB, which means that additional CAN tools are no longer required for EMC testing..

CAN FD bus rate up to support 8Mbps, the product uses optical fiber as the data transmission medium, making the transmission loss reduced, thus increasing the transmission distance, while the fiber also has excellent anti-EMI and EMC characteristics, making the anti-interference performance of the device is further enhanced.

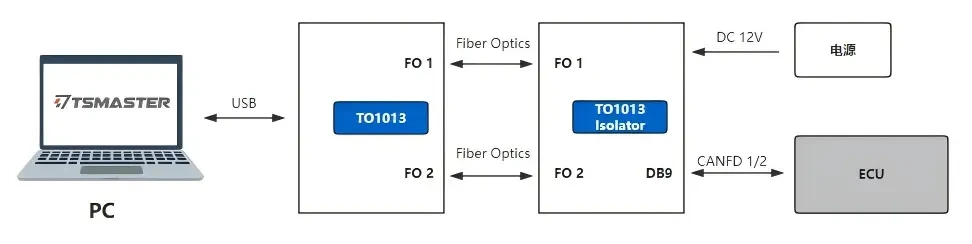

The TO1013 Isolator end is placed directly in the darkroom to convert CAN bus data into fiber optic transmission; the TO1013 end transfers CAN data from fiber optic transmission directly to the computer via USB, and with the powerful TSMaster software, which supports loading of DBC and ARXML database files, it can be very easy to monitor, analyze, and simulate the CAN FD/CAN CAN FD/CAN bus data can be easily monitored, analyzed and simulated.

Equipped with secondary development API for Windows and Linux, it can support various development environments, such as C++, C#, LabView, Python, etc., which is convenient to be integrated into various test systems with high efficiency and ease of use.

TO1013---TOSUN Introduces an Innovative CAN FD Optical Transceiver
02

typical application

  • Product EMC Testing
  • CAN bus transmission in other complex electromagnetic environments
TO1013---TOSUN Introduces an Innovative CAN FD Optical Transceiver
03

Functional Features

  • The latest CAN FD bus optoisolators are used;
  • Built-in ESD, surge protector;
  • Built-in 60/120 ohm termination resistors are configurable via toggle switches;
  • CAN channel capacitance to ground 22pF/470pF is configurable via toggle switch;
  • The TO1013 is powered by USB and the TO1013 Isolator is powered by DC 12V.
04

Technical parameters

Basic parameters

Passage

2 x CAN FD

PC interface

USB 2.0

CAN side interface

DB9

Drive

Windows system drive-free design, with excellent system compatibility

Cache

Hardware buffer, transmit buffer support up to 1000 frames per channel CAN/CAN FD

CAN

Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps

CAN FD

Supports ISO and non-ISO standard CAN FD at baud rates of 125Kbps-8Mbps

Timestamp accuracy

1us, hardware message timestamp for higher-order requirements

Terminal resistance

Built-in 60/120 ohm termination resistor configurable via toggle switch

earth capacitance

CAN channel capacitance to ground 22pF/470pF configurable via toggle switch

Send messages per second

Maximum 17,000 m/s*

Messages received per second

Maximum 17,000 m/s*

Electricity supply

USB power supply + DC 12V

power wastage

2.5W (typical)

Operating temperature

-40℃~80℃

Shell material

cooking oil

Size

Approx. 109*97*35mm

weights

Approx. 429g (unpackaged)

Operating humidity

10% to 90% (non-condensing)

working environment

Keep away from corrosive gases

EMC Characterization

ESD: IEC61000-4-2 standard, contact discharge: 4kv, air discharge: 8kv

EFT: IEC 61000-4-4 standard, 2kv

Surge: IEC 61000-4-5 standard, 2kv

*Single channel 1Mbps, 0 byte data field case
