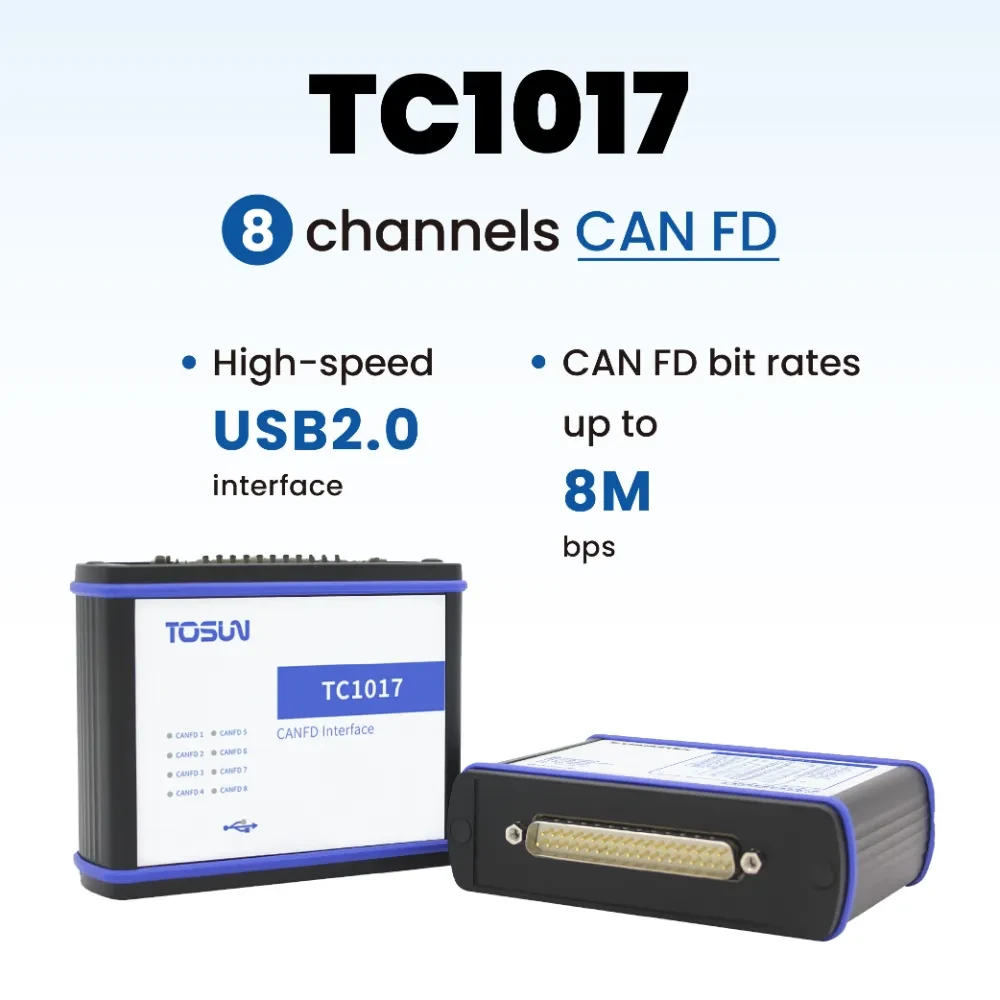

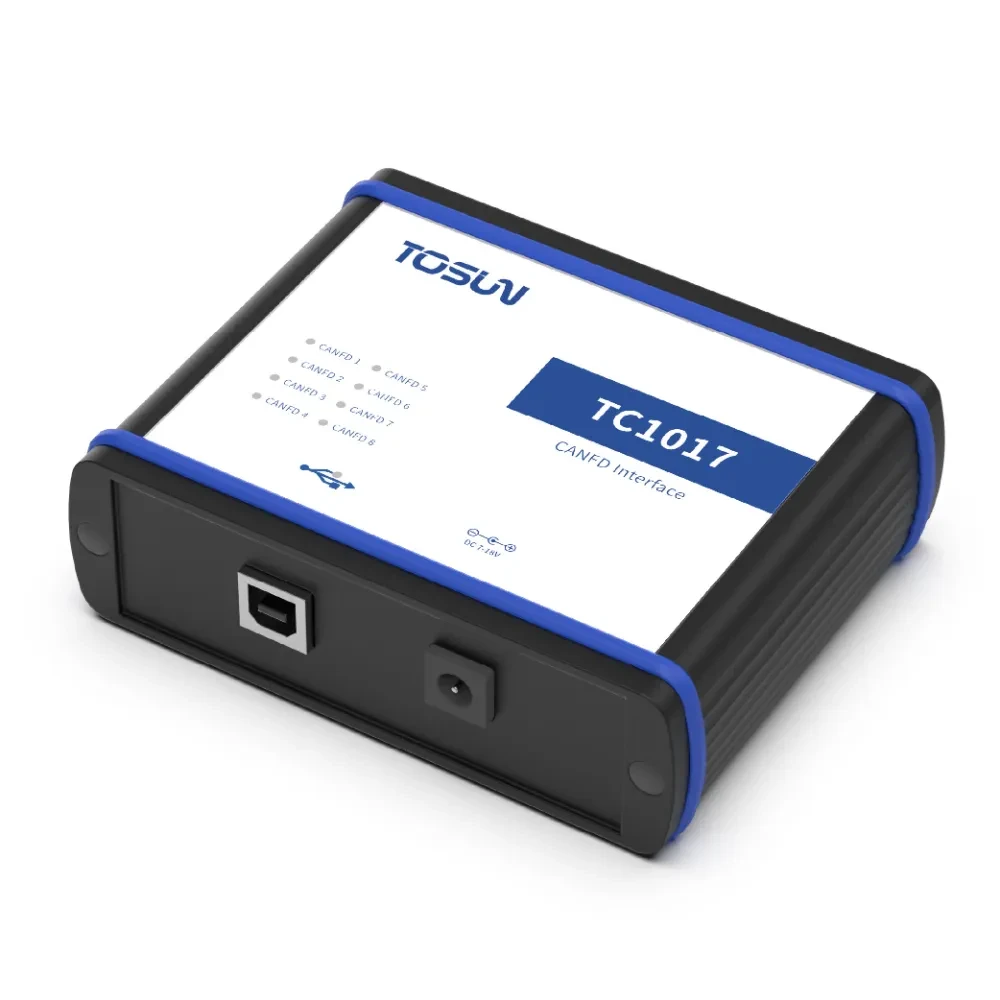

TC1017 - 8-way CAN(FD) to USB Interface
TC1017 is an 8-channel CAN FD bus to USB interface device; it can easily perform CAN FD/CAN network development, simulation and testing.
Description
Together with the powerful TSMaster software, which supports loading DBC and ARXML database files, it can easily monitor, analyze and simulate CAN FD bus data, and also support UDS diagnostics, ECU flashing, and CCP/XCP calibration.
Secondary development API for Windows and Linux, which can support various development environments, such as C++, C#, LabView, Python, etc. Easy to integrate into various test systems, efficient and easy to use.

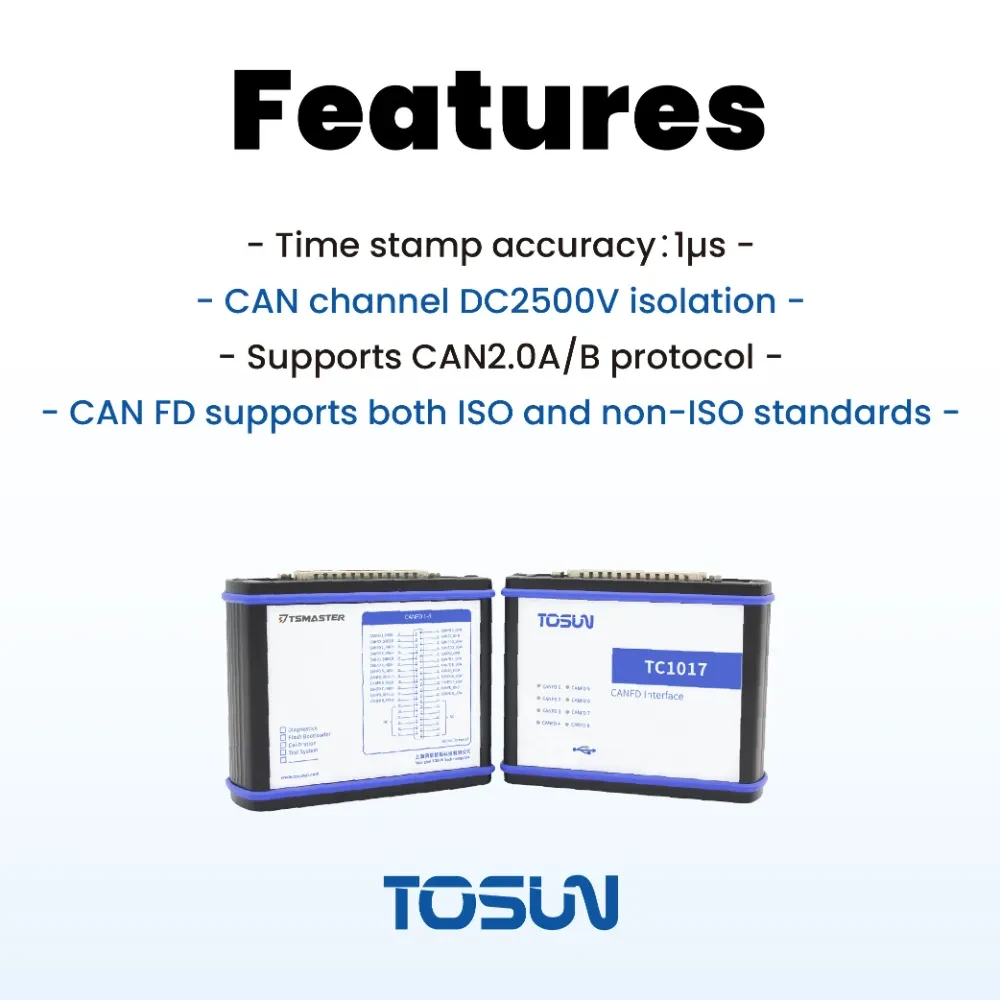

Features:
- Hardware message timestamping at us (microsecond) level for high level requirements
- Windows drive-free design for excellent system compatibility
- Number of channels: 8 channels with isolated CAN FD interface
(Individual USB power supply support 4-way transceiver, 8-way only receive and do not send; external power supply case, support 8-way full functionality), through the adapter cable to provide a standard DB-9 connector - CAN channel DC2500V isolation
- Automotive grade design, support DBC file, A2L file, ASC file, ARXML file
- Supports BLF and ASC format data logging and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supporting Windows, Linux system secondary development API interface
- All paid licenses for TSMaster software can be loaded
- Supports use as an offline gateway (not supported at this time, extended functionality in the future).
Typical applications.
- Multi-Channel CAN FD/CAN Bus Data Acquisition for Whole Vehicles
- Domain Controller Testing
- Various automated test systems
Download TC1017-Datasheet Simplified Chinese
Download TC1017-User Manual Simplified Chinese
Download TC1017-Datasheet English Version
Download TC1017-UserManual English Version
其他信息
| Passage | 8 CAN (FD) |
|---|---|
| PC side | USB 2.0 |

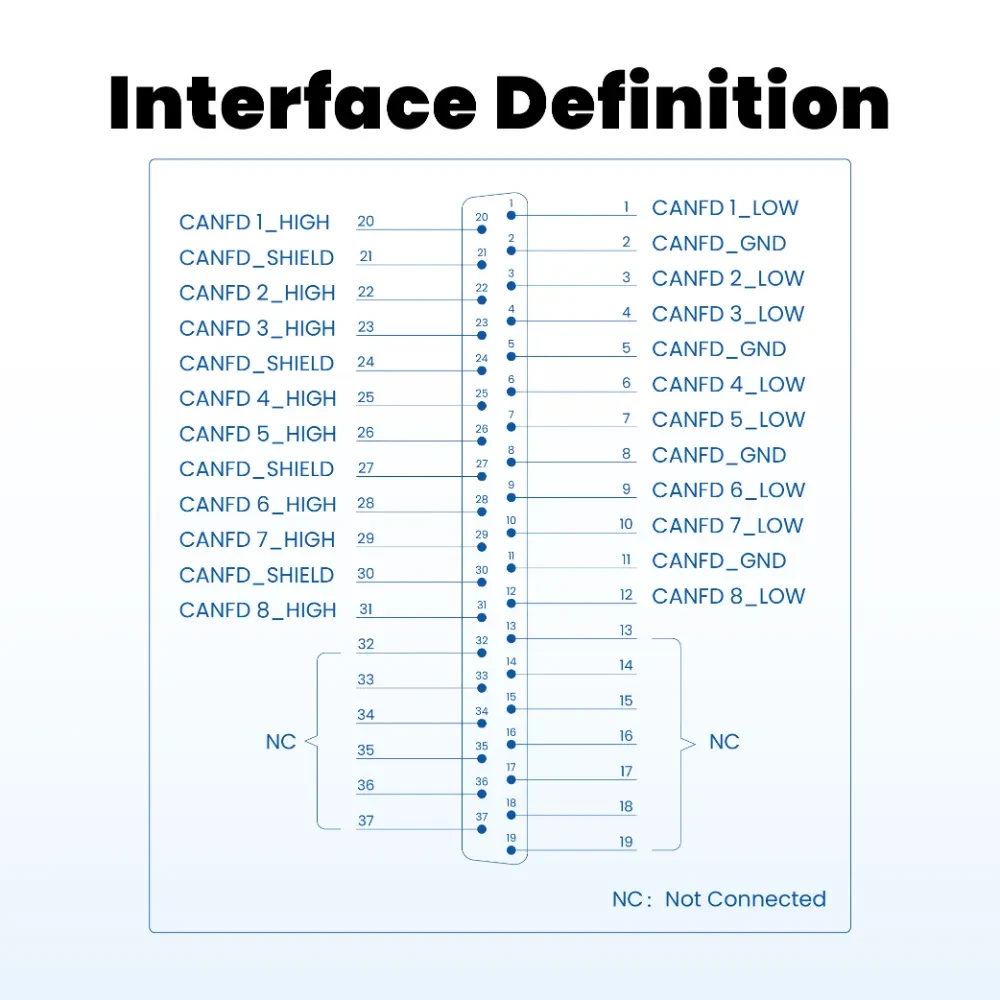

| CAN side interface | DB37 with one DB37 to 8 DB9 interface cable |
| Drive | Windows drive-free design with system compatibility |
| Cache | Hardware cache, support up to 700 CANFD frames per channel send buffer @ 64bytes |
| CAN | Support CAN2.0A and B protocols, conforming to ISO11898-1 specification, baud rate 5Kbps-1Mbps |
| CAN FD | Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps |
| Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
| Terminal resistance | Built-in 120 ohm termination resistor is software configurable |
| Send messages per second | Maximum 17000m/s |
| Messages received per second | Maximum 17000m/s |
| Isolation | CAN channel DC2500V isolation, electrostatic level contact discharge ±8KV |
| Electricity supply | DC 7-18V |
| Operating temperature | -40℃～85℃ |
| Shell material | Aluminum products |
| Size | 106mm*84mm*32mm |
