TSMaster Getting Started
Getting Started
We support software downloads and custom development.
Fill in the information to get the software download link
Help Pages help window
02
user manual
TSMaster Software "Help" Window-> "Software Manual" (English) / "Quick Start" (Chinese) to download the software operation manual.
03
Tutorials
TSMaster Software "Help" Window ->"Video Tutorials (Chinese)"/"Application Publishing" (Article Tutorials) to view articles & video tutorials.
04

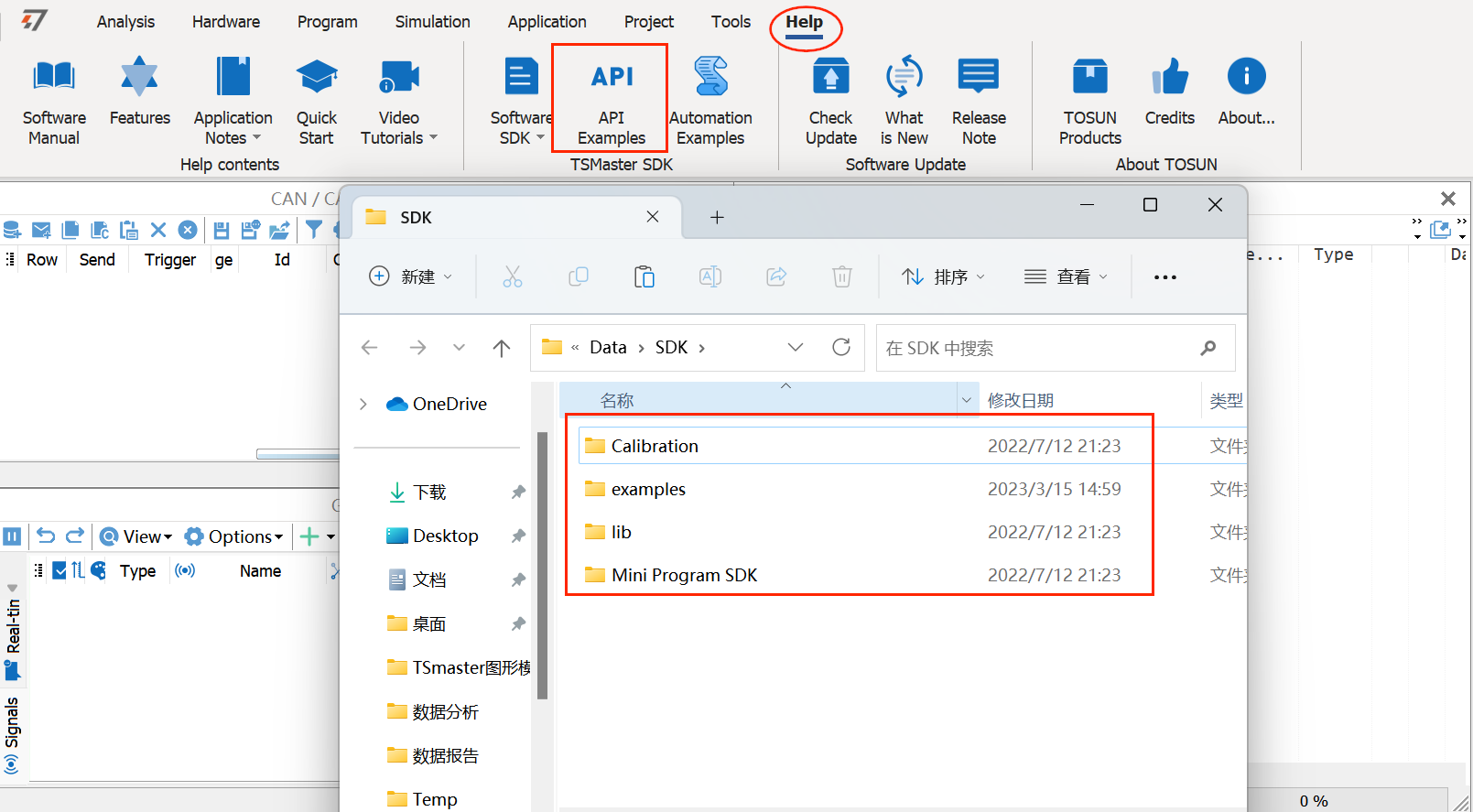

API routines
TSMaster Software "Help" Window ->"API Routines" to see sample projects for TSMaster SDK.
Connect Hardware hardware connection
01
Channel Selection
TSMaster Software "Hardware" Window-> "Channel Selection" to select the number of channels you need.
02
bus hardware
After connecting the hardware, select the channels, set the attribute configuration for each channel, connect and start the test!
03
channel mapping
Click on the "Hardware" window-"Channel Mapping" to realize the conversion between virtual channels and real physical channels.
04
Select Manufacturer
The software supports hardware tools from multiple vendors (only tosun and vector are loaded by default), if you have hardware from other vendors, you need to check the corresponding vendors to load drivers here.
Bus functions we support: CAN, LIN, Flexray, Ethernet
Our hardware support: J2534 pass-thru, J1939, C and Python language APIs.
hardware connection
Our supported bus functions:
CAN, LIN,
Flexray, Ethernet
Our hardware support:
J2534 pass-thru, J1939
C and Python Language APIs
