TC1012p - 1-channel CAN FD/LIN to USB interface (LIN supports USB power supply)

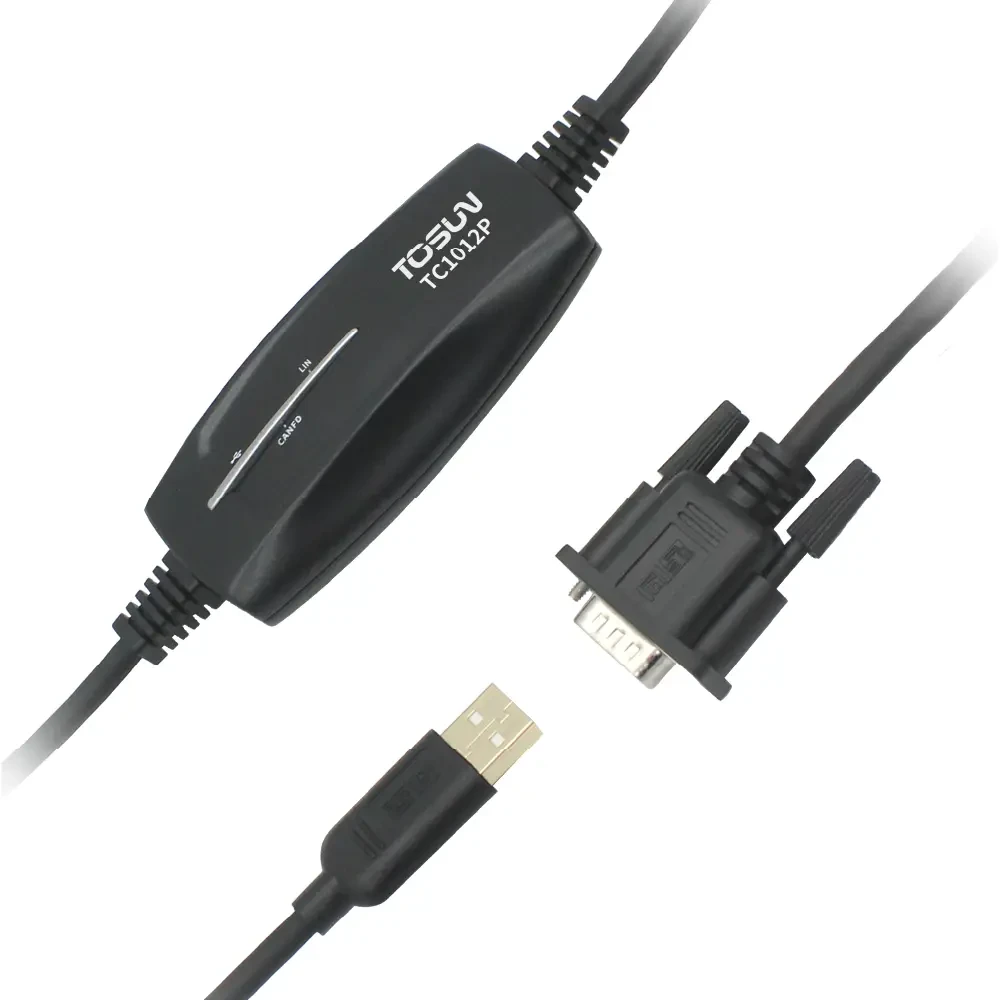

TC1012p is a single-channel CAN FD/single-channel LIN bus interface device introduced by Tongxing Intelligence, CAN FD bus rate up to 8M bps, LIN bus device support rate 0~20Kbps, LIN channel without external power supply, power supply through USB, the product adopts the high-speed USB2.0 interface to connect with the PC, the Windows system driver-free design makes the device has excellent system compatibility. The Windows driverless design makes the device have excellent system compatibility.

Categories: , Tag:

Description

  • Easy-to-install assembly hole design.
  • USB: High-speed USB 2.0 interface.
  • 1 channel CAN FD
  • 1 way LIN
  • USB power supply



Support TICPSH information security testing function.

Support dbc file, a2l file, blf file, LDF file, asc file, arxml file, to meet the needs of automotive-level CAN, LIN simulation, development, testing, diagnosis, calibration, and can be easily integrated into other devices or software systems.

It can be used by R&D personnel, testers, ECU production lines, test engineers, and after-sales personnel.

Features:

  • Time stamp resolution 1 μs, which meets advanced requirements.
  • High-speed USB 2.0 interface, Windows system drive-free design, with excellent system compatibility.
  • CAN channel DC2500V isolation.
  • Automotive grade design, support LDF, dbc file, a2l file, blf file, asc file, arxml file.
  • LIN bus master and slave nodes are software configurable.
  • Support BLF format data recording and offline/online playback.
  • It can support UDS diagnosis and CCP and XCP calibration.
  • Supports UDS-based Flash Bootloader.
  • Support information security testing.
  • Support Windows and Linux secondary development interfaces
  • Built-in 120 ohm termination resistor is software configurable.
  • All paid licenses of TSMaster can be loaded.
  • The power supply for this product offers two options: internal power supply and external power supply. If internal power supply is selected, the maximum output voltage provided by the product is 12V. If external power supply is selected, it can accept a voltage of up to 36V.



Services:

  • PC-based software customization
  • Device communication interface integration
  • BootLoader customization
  • CCP/XCP protocol customization
  • Customized diagnostic protocols
  • Function Customization
  • Production Line Integration



Download TC1012p-Datasheet Simplified Chinese

Download TC1012p-Operation Manual Simplified Chinese

Download TC1012p-Datasheet English Version

Download TC1012p-UserManual English Version







其他信息

PC side

High-speed USB 2.0 interface

CAN/LIN side

DB9 interface

Drive

Drive-free design for Windows systems with excellent system compatibility, also supports Linux

Cache

Hardware caching to ensure no frame loss

LIN

Supports LIN 1.3 and 2.x, baud rate 0-20Kbps, internal power supply fixed 12V

Scheduler

Support LDF file and run the scheduling table, you can also configure your own scheduling table

CAN

Support CAN2.0A and B protocols, conforming to ISO11898-1 specification, baud rate 5Kbps-1Mbps

CAN FD

Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps

Number of channels

1 CAN (FD), 1 LIN

Timestamp

1us, hardware message timestamp for higher-order requirements

Isolation

CAN channel DC2500V isolation, electrostatic level contact discharge ±8KV

Terminal resistance

Built-in 120 ohm termination resistor is software configurable

Electricity supply

USB power supply, LIN communication requires external power supply

Operating temperature

-40℃~85℃

Shell material

Synthetic resin
