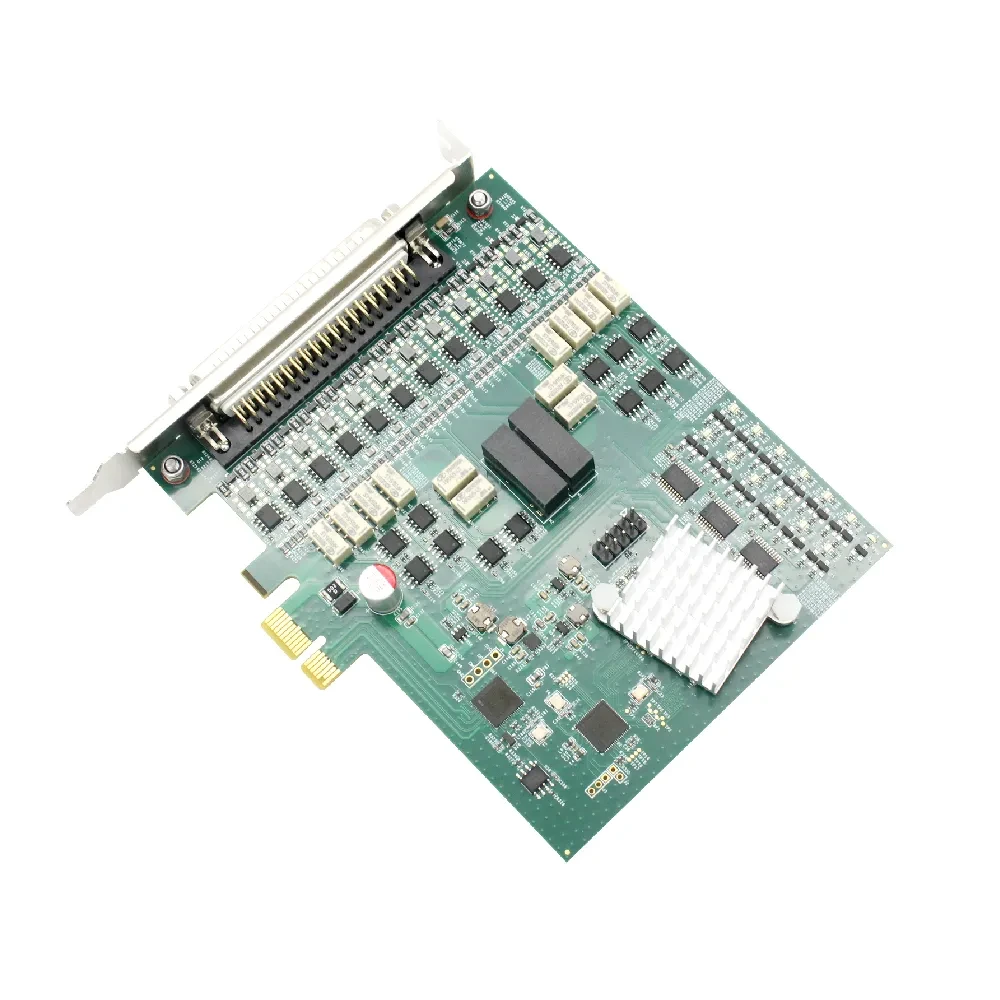

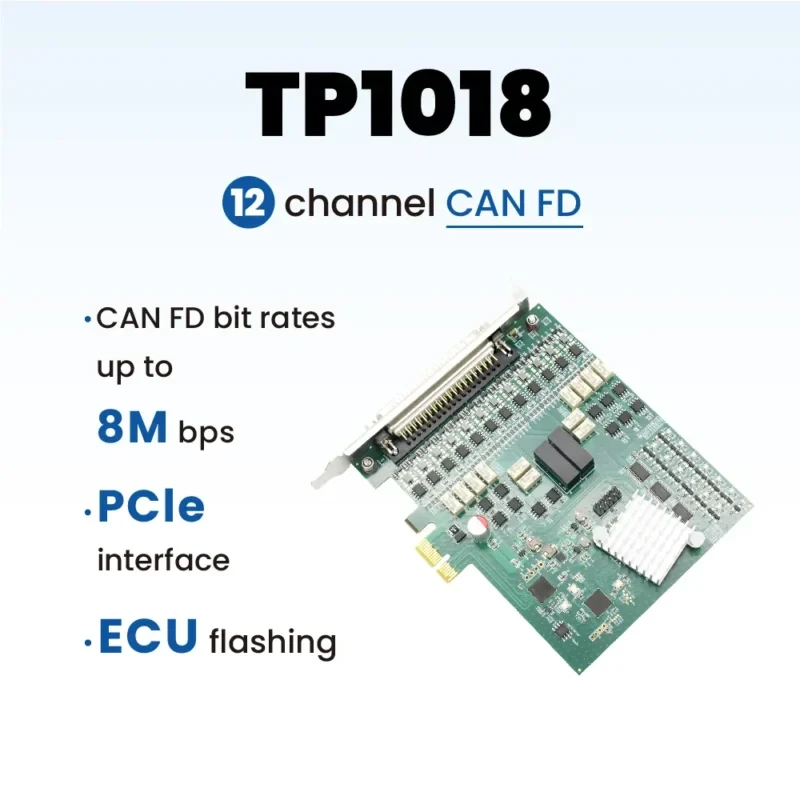

TP1018 - 12-way CAN FD to PCIe Interface
TP1018 is a 12-channel CAN FD bus to PCIe interface device; it can easily perform CAN FD/CAN network development, simulation and testing.
The TP1018 interface card enables computers with PCIe slots to easily connect to CAN/CAN FD bus networks and monitor multiple bus networks in real time. Its compact size makes it easy to be embedded in vehicle-mounted industrial controllers, single board computers (SBCs), portable industrial control mainframes, and industrial notebooks. Easy to install and simple to use.
Description
Together with the powerful TSMaster software, it can easily monitor, analyze and simulate CAN FD bus data, and also support UDS diagnosis, ECU flashing, CCP/XCP calibration and other functions.
Secondary development API, can support all kinds of development environments, such as C++, C#, LabView, Python, etc., which is convenient to integrate into various test systems, efficient and easy to use.
Features:
- Hardware message timestamping at us (microsecond) level for high level requirements
- Drive-free design for Windows/linux systems with system compatibility (full-channel full-load operation is not possible under Linux due to system limitations)
- Standard PCIe x1 interface
- Number of channels: 12 channels with isolated CAN FD interface, standard DB-9 connector available via adapter cable
- CAN channel DC2500V isolation
- Automotive grade design, support DBC file, A2L file, BLF file, ASC file, ARXML file
- Supports BLF and ASC format data logging and offline/online playback
- Supports UDS diagnostics and CCP/XCP calibration
- Supports UDS-based Flash Bootloader
- Supporting Windows, Linux system secondary development API interface
- All paid licenses for TSMaster software can be loaded
Typical applications.
- Automated Driving Data Collection
- Various automated test systems
- ECU Flashing
Download TP1018-Datasheet Simplified Chinese
Download TP1018-Owner's Manual Simplified Chinese
Download TP1018-Datasheet English Version
Download TP1018-UserManual English Version
其他信息
| Passage | 12 x CAN FD |
|---|---|
| PC side | Standard PCIe interface |
| Drive | Windows system drive-free design, with excellent system compatibility |
| Cache | Hardware caching to ensure no frame loss |
| CAN | Support CAN2.0A and B protocols, conforming to ISO11898-1 specification, baud rate 5Kbps-1Mbps |
| CAN FD | Support ISO and non-ISO standard CAN FD, baud rate 100Kbps-8Mbps |
| Timestamp accuracy | 1us, hardware message timestamp for higher-order requirements |
| Send messages per second | Maximum 20,000mps |
| Messages received per second | Maximum 20,000mps |
| Isolation | CAN channel DC2500V isolation |
| Electricity supply | PCIe power supply |
| Size | 128*120*21.5mm |
| Operating temperature | -40℃～70℃ |
