TE1051 - 100/1000Base-Tx/T1/T Interface Tool

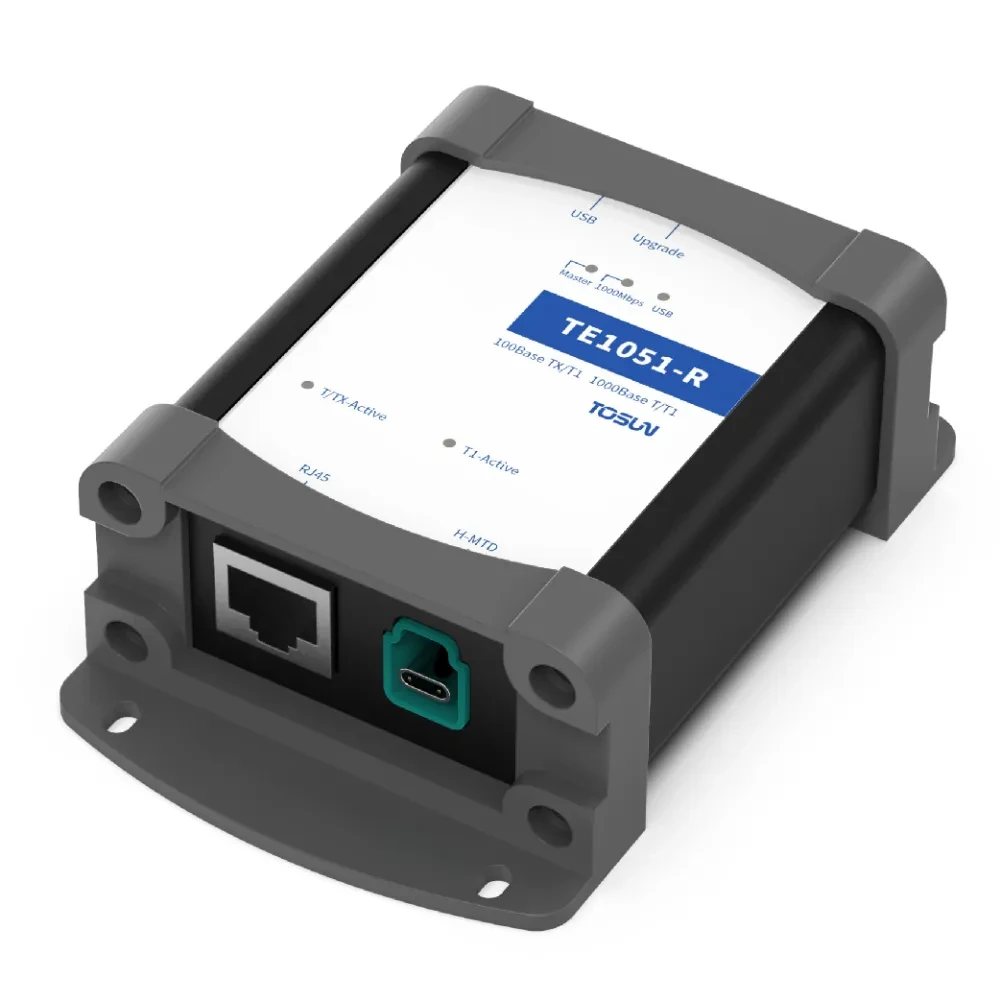

TE1051 is a 1-way Ethernet to USB interface tool. Users can transfer the data of one of the modes of standard Ethernet 100Base-Tx 1000Base-T or Car Ethernet 100/1000Base-T1 to PC via USB interface, and realize the simulation, analysis and testing of Ethernet data through TSMaster software, as well as DoIP, SOMEIP, etc. The TE1051 is small and rugged with no external power supply. Compact and ruggedized case, no external power supply required, easy to use.

Category: Tag:

Description

TOSUN launched single Ethernet converter TE1051, which can be used alone or with Tongxing series Ethernet converter (TE1021/TE1105) to realize the functions of real-time observation of message information and recording of message information in TSMaster software.

Features:

  • Hundred-us (microsecond) hardware message timestamps
  • Driverless design for Windows 10/11, driver required for Win7
  • 1x 100Base-Tx 1000Base-T 100/1000Base-T1, switchable selection at any time via software

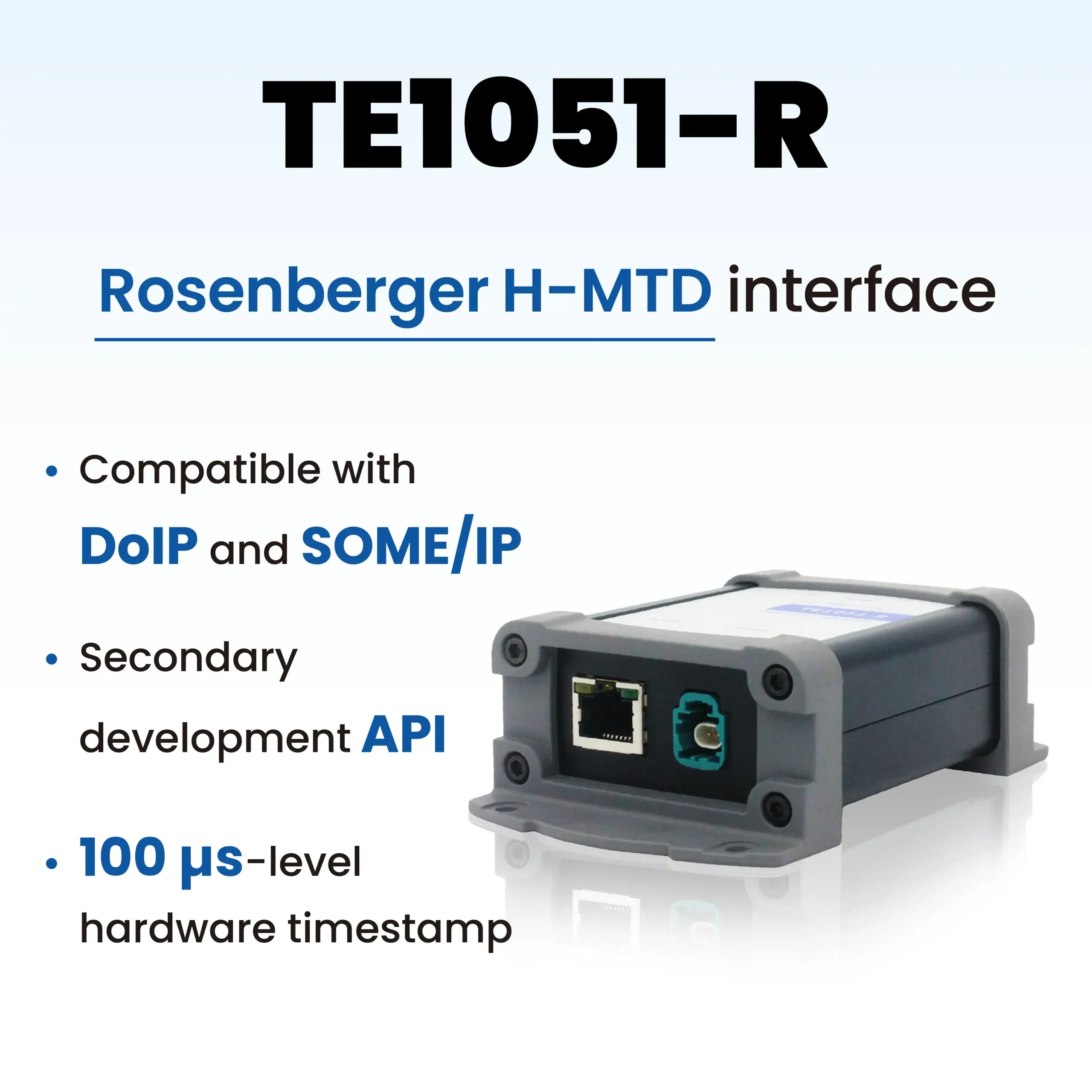

  • In-vehicle Ethernet interface forms: TE MATEnet and Rosenberger H-MTD
  • LEDs show status of on-board/standard Ethernet operation
  • LED displays system status, including rate, master/slave and USB status indication
  • Automotive-grade design supports loading ARXML files in TSMaster to parse in-vehicle Ethernet messages
  • DoIP support
  • Support SOMEIP
  • Support Windows secondary development API interface, support time-stamped Ethernet message RAW format receive, send and send completion events, support to modify the message CRC
  • Provide TCPIP sample projects based on API interface and lwip stack for secondary development.
  • Loopback maximum rate of approximately 7 Mbyte (transceiver duplex)
  • Operating Temperature Range: -40℃~80℃
  • Product size: Aluminum alloy shell size 110X70X36 mm

Typical applications.

  • Vehicle Ethernet Residual Bus Simulation
  • In-vehicle Ethernet data monitoring and parsing
  • In-vehicle Ethernet communication testing



Download TE1051-Datasheet Simplified Chinese

Download TE1051-User Manual Simplified Chinese

Download TE1051-Datasheet English Version

Download TE1051-UserManual English Version



For more information, please contact our sales team

Additional information

Passage

Standard Ethernet 100Base-Tx 1000Base-T or Car Ethernet 100/1000Base-T1

PC interface

USB 2.0

Ethernet interface

RJ45+TE MATEnet or Rosenberger H-MTD

Drive

Driverless design for Windows 10/11, driver required for Win7

Timestamp accuracy

Hundred-us (microsecond) hardware message timestamps

Isolation method

Network Transformer/Capacitor Isolation

Electricity supply

USB power supply

Operating temperature

-40℃~80℃

Housing material

Aluminum products

Size

110mm*70mm*36mm
