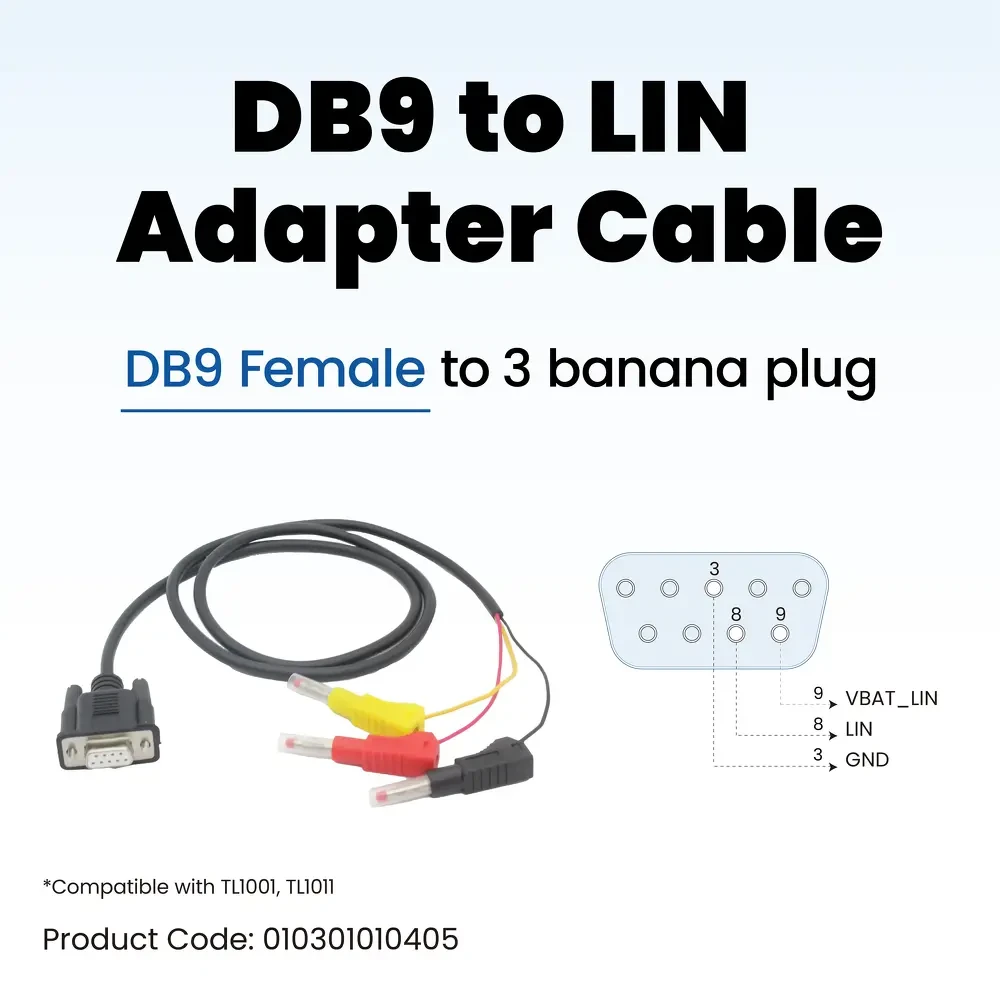

DB9 to 1-wire LIN Cable
- Single-channel LIN output(VBAT_LIN, LIN, GND)
- Banana Plug DesignCan be quickly connected to an oscilloscope or measurement device
- Color-coded power, ground, and signal wires for more intuitive wiring.
- Industrial-grade shielded cables enhance interference resistance.
- Applicable to TL1001 and TL1011

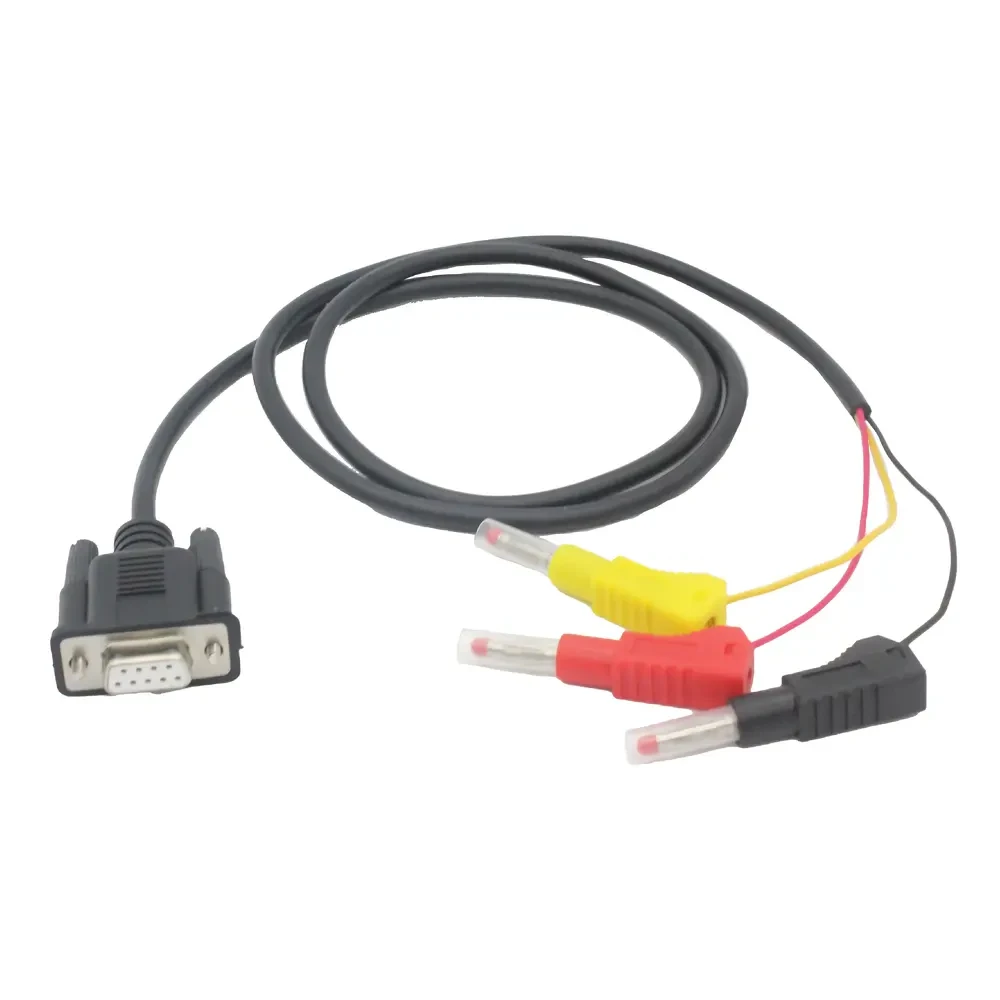

DB9 to 1-wire LIN Cable
: Product Overview
DB9 to 1-wire LIN Cable:
The master unit employs high-quality D-Sub 9-pin female connectorseparateSingle-channel LIN banana plug outputSuitable for basic LIN bus measurements, oscilloscope observation, and laboratory debugging applications.
The entire cable features a fully shielded design to effectively reduce electromagnetic interference, ensuring LIN signals remain stable throughout testing, validation, and development processes.Stable, ,Precision transmission quality.
其他信息
Download
Simplified Chinese
English version
Simplified Chinese
English version
Software package
Software package
Software package
FAQ
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
