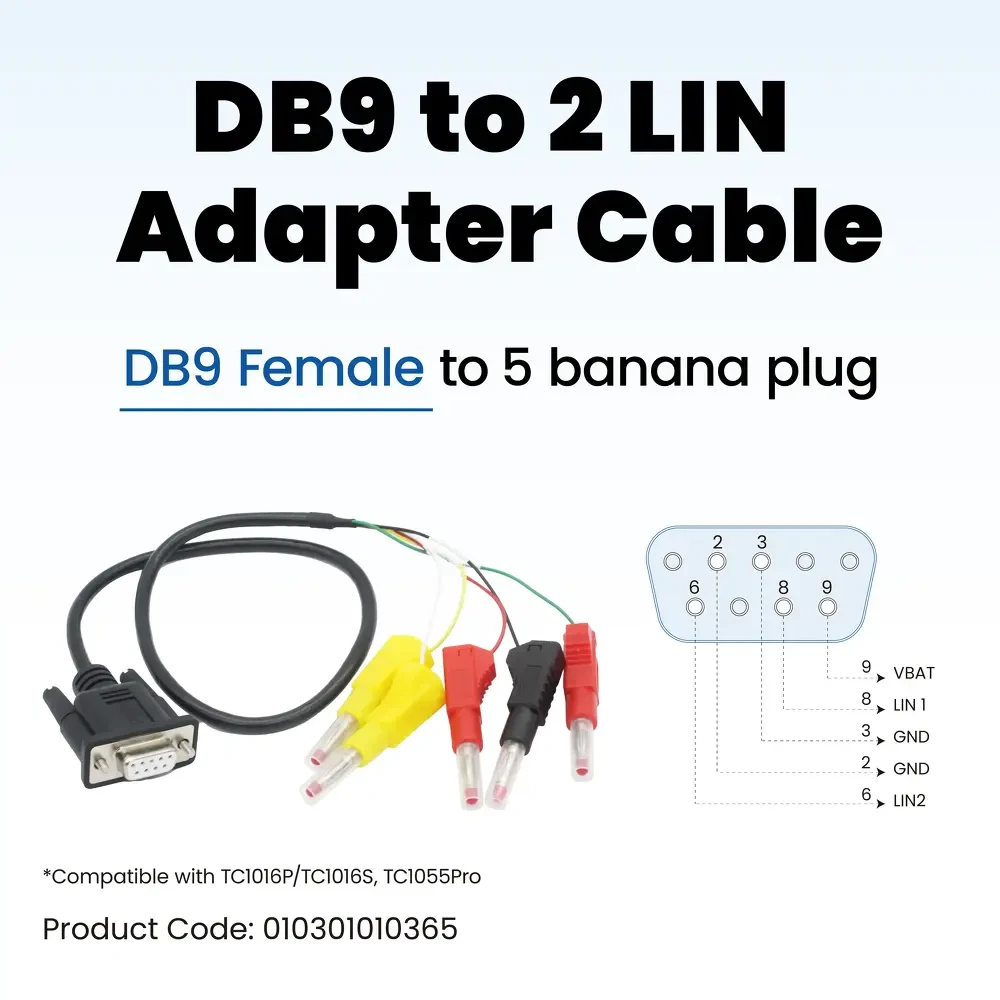

DB9 to 2 LIN Cable
- 2-channel LIN output(LIN1, LIN2)
- Banana Plug DesignCan be directly connected to an oscilloscope or test platform
- Power supply, ground wire, and signal wireColors clearly distinguishedreduce the risk of misconnection
- Fully shielded cable, effectively enhancing interference resistance
- Applicable to TCI016P / TCI016S / TCI055Pro
DB9 to 2 LIN Cable
: Product Overview

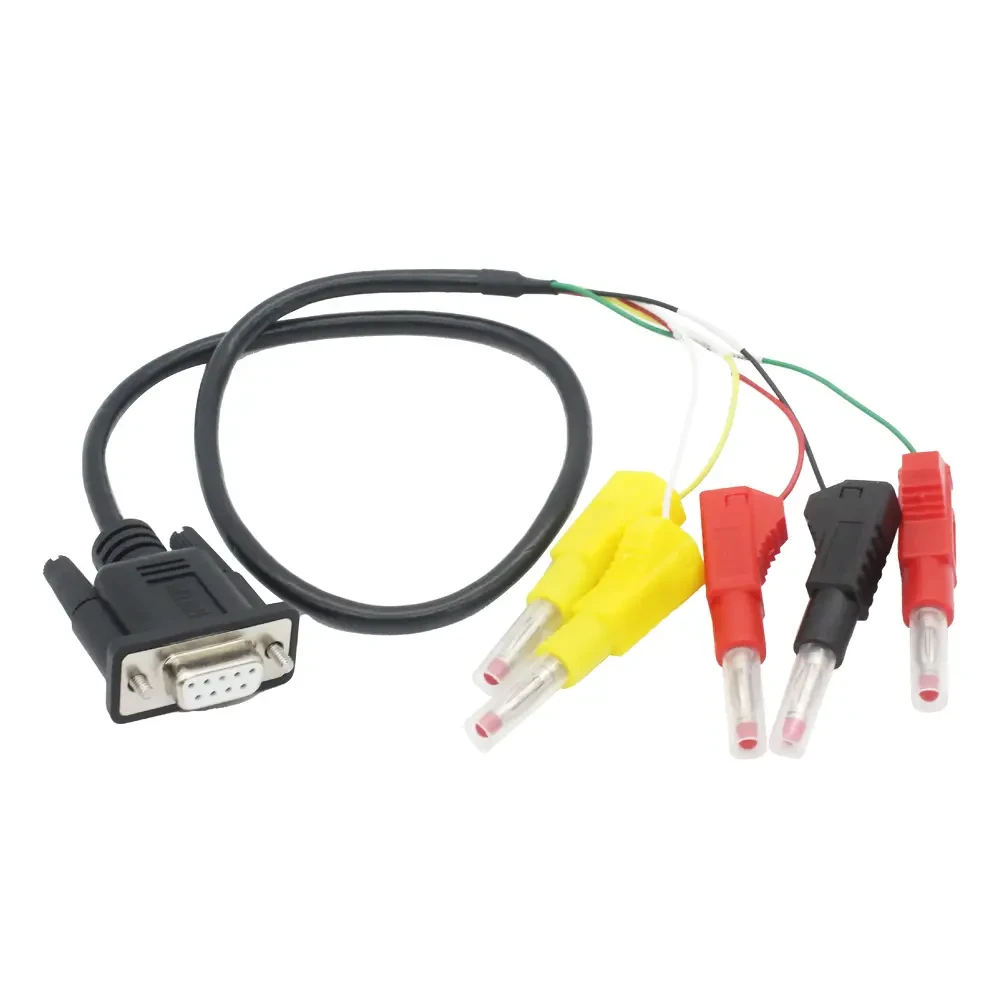

DB9 to 2 LIN Cable
The master unit employs high-quality D-Sub 9-pin female connectorseparate 2-channel independent LIN banana plug designIt can simultaneously connect two sets of communication signals, LIN1 and LIN2, making it suitable for various applications such as basic testing, oscilloscope measurements, and laboratory verification.
The entire cable is constructed usingFully shielded structureEffectively reduce electromagnetic interference to ensure the LIN bus remains stable during data acquisition, debugging, and validation processes.Stable, precise, and reliablesignal quality.
其他信息
Download
Simplified Chinese
English version
Simplified Chinese
English version
Software package
Software package
Software package
FAQ
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
