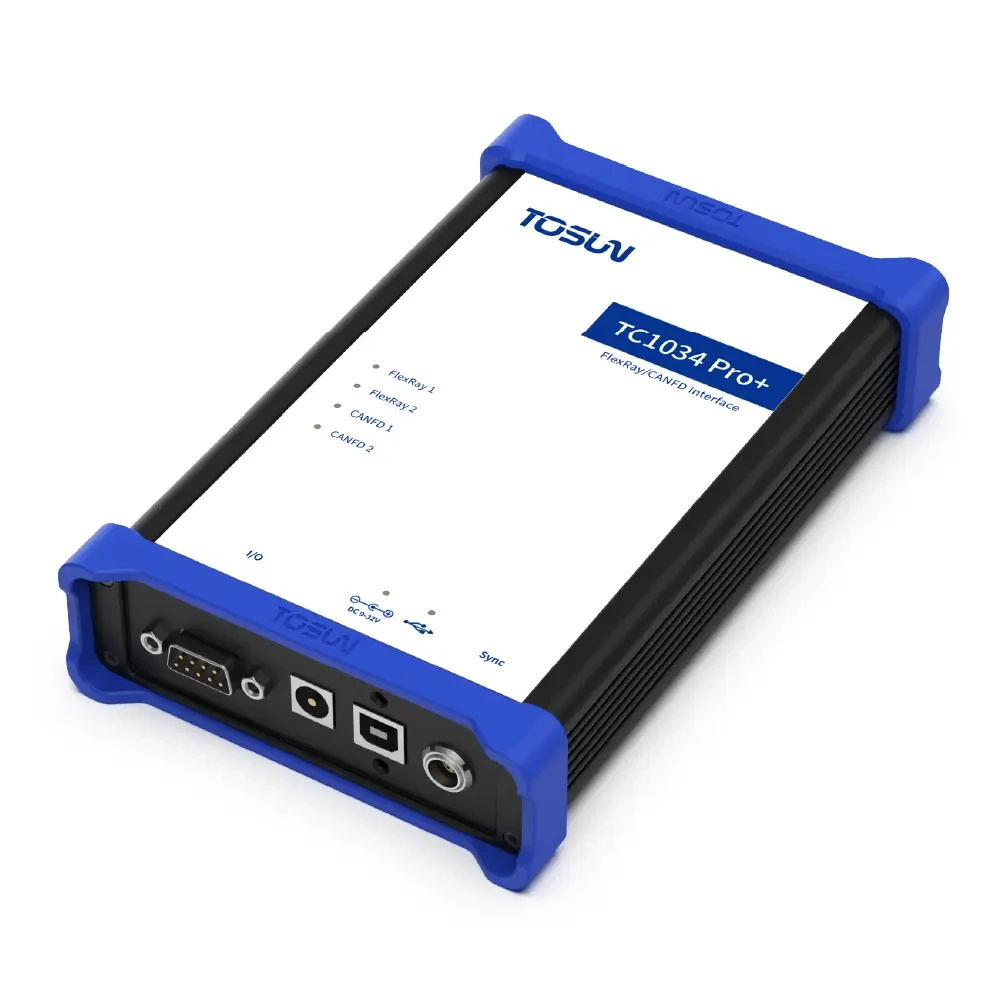

TC1034 Pro+ – 2-channel FlexRay, 2-channel CAN (FD), Multiple I/O Channels to USB
- Self-ACK
- Proactively send error frames
- Time Synchronization Box
- High-Precision Periodic Messages
- “Disable Acknowledgment Mode” supports reporting ACK errors.
TC1034 Pro+ – 2-channel FlexRay, 2-channel CAN (FD), Multiple I/O Channels to USB
: Product Overview
Paired with the powerful TSMaster software, it supports loading DBC and ARXML database files, enabling convenient monitoring, analysis, and simulation of CAN FD bus data. It also supports UDS diagnostics, ECU programming, and CCP/XCP calibration functions.
The secondary development API for Windows and Linux supports various development environments, such as C++, C#, LabView, Python, etc. It is easy to be integrated into various test systems and is efficient and easy to use.
Features:
- µs (microsecond) level hardware message timestamps for high level requirements
- Drive-free design for Windows systems
- 2-channel CAN/CANFD, 2-channel FlexRay
- Supports DIDO*4 and AIAO*3
- CAN channel baud rate adjustable from 125 Kbps to 1 Mbps; CANFD supports up to 8 Mbps.
- CAN features a built-in 120Ω terminating resistor that is software-configurable.
- FlexRay incorporates a 100Ω termination resistor that is software-configurable.
- Features an auxiliary communication controller, enabling cold start without requiring additional nodes.
- CAN supports Self-ACK configuration
- Supports BLF and ASC format data recording and offline/online playback
- Supports multi-device hardware time synchronization
- Provide sample projects based on API interfaces for secondary development;
Hardware technical parameters:
| Channels | 2xCANFD / 2xFlexRay / 4xDIDO / 3xAIAO |
| PC interface | USB2.0 |
| CANFD End Interface | DB9 |
| Driver | Drive-free design for Windows, Linux systems with excellent system compatibility |
| Cache | Hardware buffer, transmit buffer support up to 1000 CAN frames per channel |
| CAN | Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps |
| CANFD | Supports ISO and non-ISO CAN FD with baud rates of 125Kbps-8Mbps |
| DIDO | DI: 0-40V Vref: 0-3.3V,. Threshold Range: VAH = (330 + 499*Vref) / 1098; Val = 0.455*Vref DO: Low Level 0V, High Level 5V/12V (Not supported for use with load) |
| AIAO | AI: 0-39V AO: 0-30V |
| AI sampling rate | 1 to 1000 Hz |
| AIAO Accuracy | 1% |
| Time Stamp Accuracy | 1us, hardware message timestamp for high level requirements |
| Terminating Resistors | Built-in 120 ohm termination resistor is software configurable |
| Messages per second* | Maximum 20000 frames/sec |
| Messages received per second* | Maximum 20000 frames/sec |
| Isolation | CAN channel DC 2500V isolated, electrostatic discharge rating: contact ±2KV, air discharge ±15KV |
| Electricity Supply | 9~32V DC power supply |
| Power Wastage | 4W/10W (DO full-channel push-pull mode PWM output) |
| Housing Material | metals |
| Sizes | Approximately 178*113*38mm |
| Weights | Approximately 433 g (without packaging)/Approximately 922 g (with packaging) |
| Oerating temperature | -40℃～80℃ |
| Operating humidity | 10% to 90% (non-condensing) |
| Working environment | Keep away from corrosive gases |
*Single channel 1Mbps, 0 byte data field case
Parameters
| Parameters | Test Conditions | Minimum Value | Typical Value | Maximum Value | Unit | |
| Operating Voltage | DC power supply | CAN transceiver, FlexRay transceiver | 9 | 12 | 32 | V |
| Operating Current | DC power supply | CAN transceiver, FlexRay transceiver | — | 0.3 | — | A |
| Power Wastage | DC power supply | CAN transceiver, FlexRay transceiver | — | 4 | — | W |
| CAN Interface | Bus Pin Withstand Voltage | CANH, CAHL | -58 | — | 58 | V |
| Terminating Resistors | Enable termination resistor | — | 120 | — | Ω | |
| Isolation Withstand Voltage | Leakage current < 1mA | 2500 | — | — | VDC | |
| EMC Electromagnetic Compatibility | ESD | IEC61000-4-2 standard | Contact Discharge: 2 Air discharge: 15 |
— | — | kV |
| EFT | IEC61000-4-4 Standard | 2 | — | — | kV | |
| Surge | IEC 61000-4-5 Standard | 2 | — | — | kV | |
其他信息
Download
Simplified Chinese
English version
Software package
Software package
Software package
FAQ
Pro 版本是否支持 Self ACK？用途是什么？
在某些特殊测试场景（例如强制唤醒/呼叫 ECU、单节点网络需要主动 ACK 帧）中非常必要，可确保报文顺利被总线确认。
Pro 版本是否支持更高性能的工作模式？
Pro 版本在“只听模式（Listen-Only Mode）”下，有什么特别功能？
即使设备不回 ACK，也能监控总线上是否出现 ACK 异常，便于诊断网络健康状况。
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
