TC3014 - Multi CAN/CAN FD communication tool

Name: TC3014 - Multi CAN/CAN FD communication tool - TOSUN Technology
SKU: TC3014

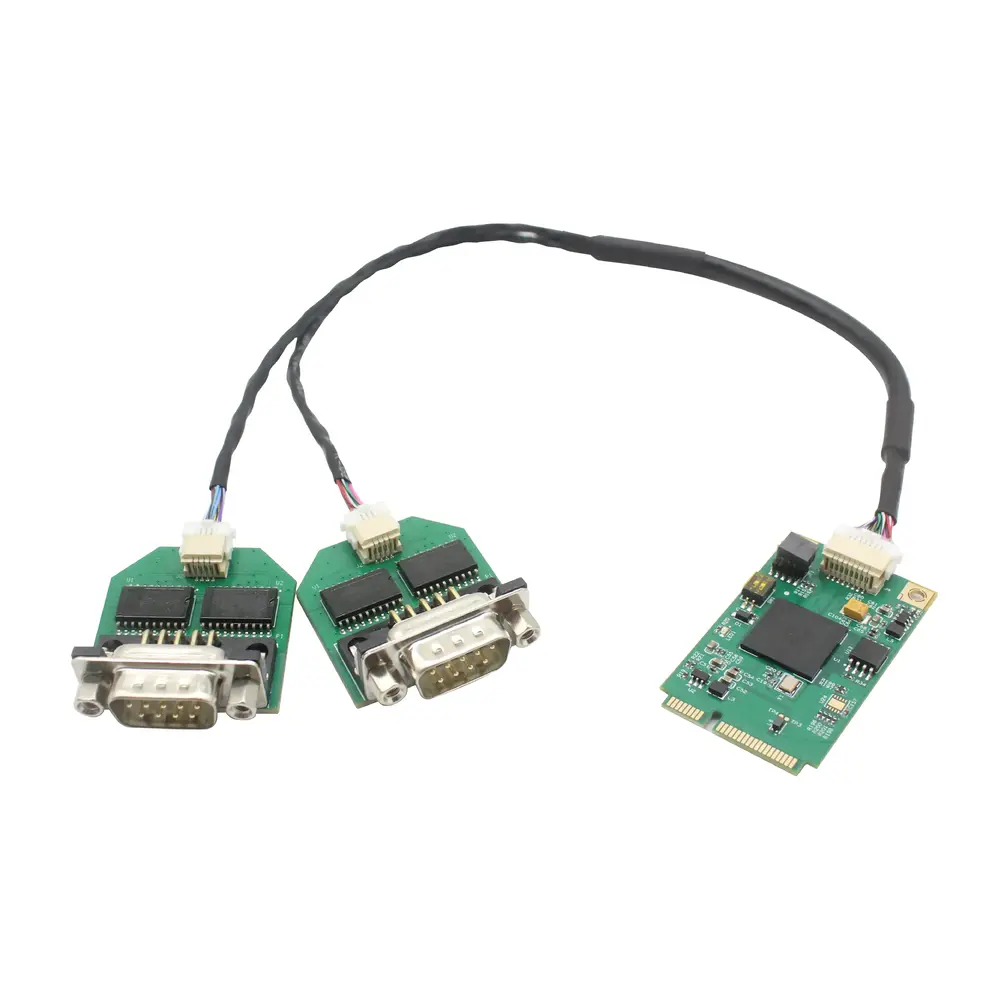

The TC3014 is a multi-channel CAN/CAN FD communication tool based on SocketCAN. It features four independent and isolated CAN/CAN FD interfaces, enabling CAN communication as easily and efficiently as network programming. The device supports CAN FD bus speeds up to 5 Mbps (optionally up to 8 Mbps), connects to the host via a Mini PCIe interface, and provides a fully compatible Linux driver, ensuring excellent system integration and stability.

SKU TC3014 Categorization CAN / CAN FD Tags TC3014

Descriptive

Download

FAQ

TC3014 - Multi CAN/CAN FD communication tool

: Product Overview

Equipped with a China-made main control chip, TC3014 supports full localization configurations and enables real-time monitoring of multiple bus networks simultaneously. Its compact design allows for easy integration into in-vehicle industrial PCs, single-board computers, portable industrial hosts, and rugged notebooks, offering flexible installation and deployment.

Specifications

Parameters	instructions
PC Interface	Mini PCIe interface (USB channel)
Driver	Linux driver support
Cache	Hardware cache
Connector	Standard D-Sub, 9-pin
CAN	Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps
CAN FD	Supports ISO and non-ISO standard CAN FD at baud rates of 125Kbps-5Mbps (8Mbps optional)
Electricity Supply	Powered via Mini PCIe
Power Wastage	2W
Sampling point	Adjustable from 70% ~ 90%
Sizes	30 * 50.95mm
Weights	无包装
工作湿度范围	10%~90% (no condensation)
Working environment	Keep away from corrosive gases

CAN/CAN FD

Parameters	instructions
Supported Protocols	CAN 2.0 A/B (ISO 11898-1), CAN FD (ISO and non-ISO)
CAN Baud Rate	125Kbps ~ 1Mbps
CAN Frame Data Length	Up to 8 bytes
CAN FD Baud Rate	125 Kbps ~ 5 Mbps (8 Mbps optional)
CAN FD Frame Data Length	Up to 64 bytes; supports BRS frames
Channel Number	4 x CAN/CAN FD, mutually isolated
Cache	Hardware cache

其他信息

Download

Datasheet

Simplified Chinese

Datasheet

English version

User Manual

Simplified Chinese

User Manual

English version

Software package

FAQ

Please keep in mind

Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.

Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
