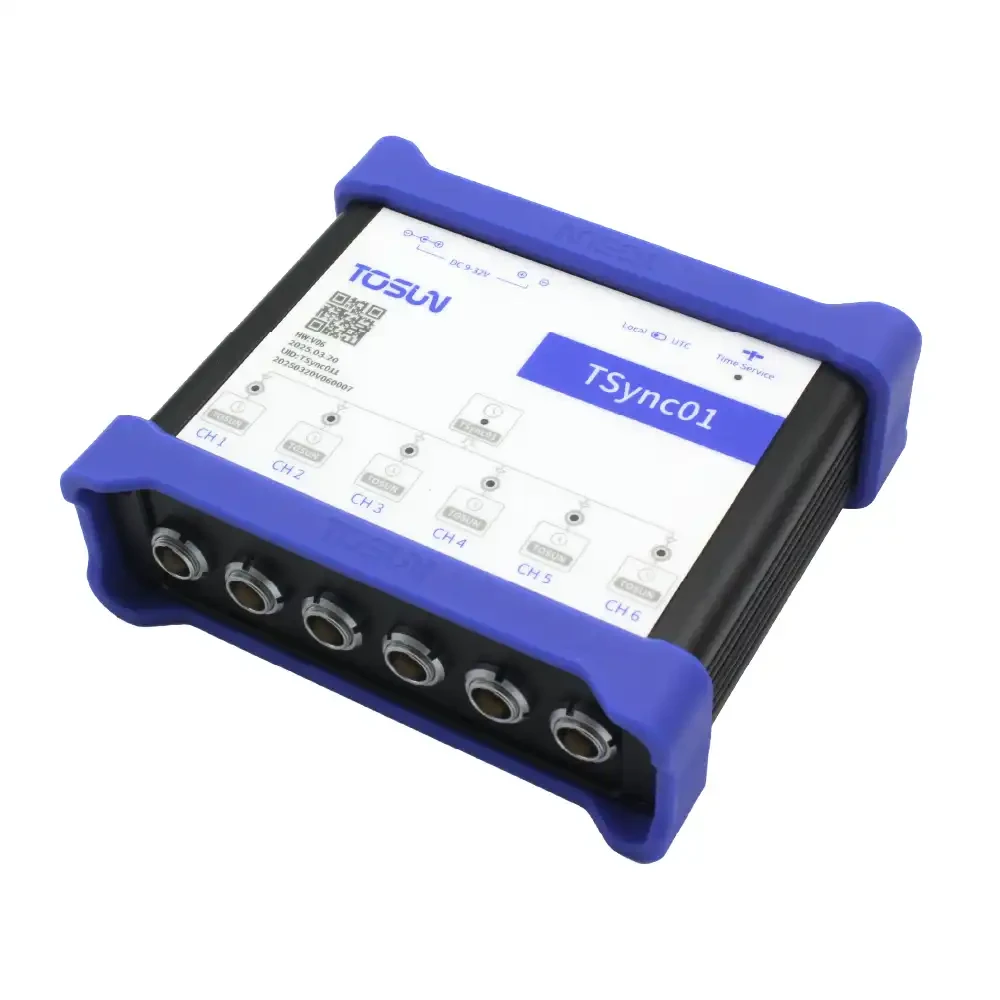

TSync01 - High-precision time synchronization device
TSync01 - High-precision time synchronization device
: Product Overview
- μs (microsecond)-level time synchronization to meet the needs of various time-sensitive applications.
- Support for multiple GPS satellite systems. TSync01 is compatible with BeiDou, GPS, GLONASS, and other global satellite systems, ensuring optimal time signal reception in diverse environments.
- Flexible synchronization modes. Users can configure the device for either relative or absolute time synchronization based on actual requirements.
Relative Time Synchronization:Adjusts the slave device time dynamically by analyzing pulse signals, ensuring relative synchronization among multiple slave devices. (Suitable for scenarios where absolute time is not required, but synchronized timing among devices is essential.)
Absolute Time Synchronization:Obtains standard UTC time from GPS satellite signals and adjusts the slave device time accordingly, achieving absolute synchronization across multiple devices. (Ideal for applications with high time precision requirements and a need for absolute time accuracy.)
*Absolute time synchronization mode requires an external antenna to receive GPS signals. Please ensure a stable antenna connection and an unobstructed environment to guarantee GPS accuracy.
Technical Parameters
| Channels | 6* CH |
| Interface | LEMO aviation connector |
| 时间同步精度 | us（微秒）级时间同步 |
| Electricity Supply | Power Supply Phoenix terminal power supply or power adapter (9-32V)Power |
| Power Wastage | 3W |
| Housing Material | metals |
| Sizes | 113*98*38mm |
| Weights | Approx. 281g (without packaging) /Approx. 1375.7g (with packaging) |
| Oerating temperature | -40℃~80℃ |
| Operating humidity | 10% to 90% (non-condensing) |
| Working environment | Keep away from corrosive gases |
Parameters
| Parameters | Test Conditions | Minimum Value | Typical Value | Maximum Value | Unit | |
| Operating Voltage | DC power supply | 6-channel time synchronization | 9 | 12 | 32 | V |
| Operating Current | DC power supply | 6-channel time synchronization | — | 0.16 | — | A |
| Power Wastage | DC power supply | 6-channel time synchronization | — | 1.92 | — | W |
其他信息
Download
Simplified Chinese
English version
Simplified Chinese
English version
Software package
Software package
Software package
FAQ
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
