In cutting-edge fields such as distributed measurement and control, autonomous driving R&D, and intelligent transportation, the precise synchronization of a system's “heartbeat” directly determines data reliability and decision-making accuracy. The TSync01 high-precision time synchronization device from TOSUN will serve as critical infrastructure for engineers and R&D teams building highly reliable systems, enabling controllable timing and more precise collaboration.
Products

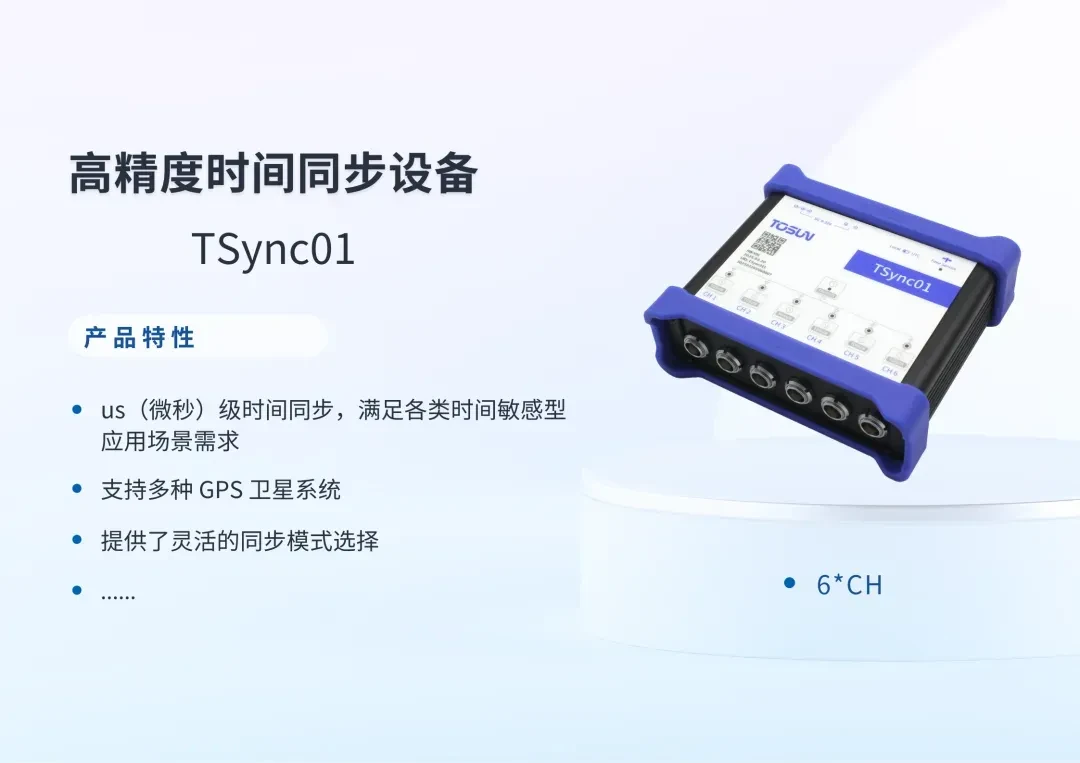

TSync01 is a high-precision time synchronization device developed by TOSUN, specifically designed for systems requiring accurate time synchronization.
Timing can be provided via GPS satellites to ensure the accuracy and consistency of the system time.
Users can configure relative synchronization and absolute synchronization modes. This device functions as a time synchronization server, supporting up to six slave devices connected to the synchronization network, and is simple and portable to use.
Product Features.
- Microsecond-level time synchronization to meet the demands of various time-sensitive application scenarios.
- Supports multiple GPS satellite systems:
TSync01 is compatible with multiple global satellite positioning systems including BeiDou, GPS, and GLONASS, ensuring access to the optimal time signal source in any environment. - Flexible synchronization modes. Users can configure the device for either relative or absolute
time synchronization based on actual requirements.
- Relative Time Synchronization:Adjusts the slave device time dynamically by analyzing pulse signals, ensuring relative synchronization among multiple slave devices. (Suitable for scenarios where absolute time is not required, but synchronized timing among devices is essential.)
- Absolute Time Synchronization:Obtains standard UTC time from GPS satellite signals and
adjusts the slave device time accordingly, achieving absolute synchronization across multiple
devices. (Ideal for applications with high time precision requirements and a need for absolute time
accuracy.)
*绝对时间同步模式需连接天线获取 GPS 信号，请确保天线连接的稳定性以及所处环境
无遮挡，以保障 GPS 的准确性。
Technical Parameters
Specifications
| Basic parameters | |
| Channels | 6* CH |
| Interface | LEMO aviation connector |
| Time synchronization accuracy | us（微秒）级时间同步 |
| Electricity Supply | Power Supply Phoenix terminal power supply or power adapter (9-32V)Power |
| Power Wastage | 3W |
| Housing Material | metals |
| Sizes | 113*98*38mm |
| Weights | Approximately 281g (without packaging)/Approximately 1375.7g (including packaging) |
| Oerating temperature | -40℃~80℃ |
| Operating humidity | 10% to 90% (non-condensing) |
| Working environment | Keep away from corrosive gases |
Parameters
| Parameters | Test Conditions | Minimum Value | Typical Value | Maximum Value | Unit | |
| Operating Voltage | DC power supply | 6-channel time synchronization | 9 | 12 | 32 | V |
| Operating Current | DC power supply | 6-channel time synchronization | — | 0.16 | — | A |
| Power Wastage | DC power supply | 6-channel time synchronization | — | 1.92 | — | W |
Early Access! TSync01 High-Precision Time Synchronization Device Now Open for Trial Applications
Are you struggling to debug time discrepancies across multiple devices? Looking for a reliable, portable, and easy-to-deploy time synchronization solution? Now is your chance!Follow the TOSUN official account and apply through the “Product Center” - “Request Trial” channel in the service window..．
