TC1052 - CAN FD/10Base-T1S to USB interface

Used with TSMaster, the TC1052 supports Ethernet data monitoring, simulation, analysis, and testing, including DoIP and SOME/IP protocol functions.

In addition to 10 BASE-T1S, the TC1052 provides two CAN FD channels (up to 8 Mbps), supporting DBC and ARXML databases for convenient monitoring, analysis, and simulation. It also supports UDS diagnostics, ECU flashing, and CCP/XCP calibration.

The TC1052 connects to the PC via USB and requires no external power, offering simple and convenient operation.

Features

• μs-level hardware timestamps provide accurate timing for advanced simulation and diagnostics
• USB 2.0 driver-free design, plug-and-play on Windows/Linux, with excellent system compatibility.
• CAN channels feature DC2500V isolation and automotive-grade quality design, withstanding harsh operating conditions.
• Software-configurable 120 Ω CAN termination; 100 Ω T1S termination; supports software-set node ID, node count, and timeout parameters for easy T1S network setup
• Fully supports mainstream file formats such as DBC, seamlessly integrating with all advanced features of TSMaster; hardware captures raw Ethernet packets, enabling simulation, analysis, and testing of upper-layer protocols in conjunction with TSMaster.
• Integrated core functions including BLF data logging and playback, UDS diagnostics, CCP/XCP calibration, and Flash Bootloader

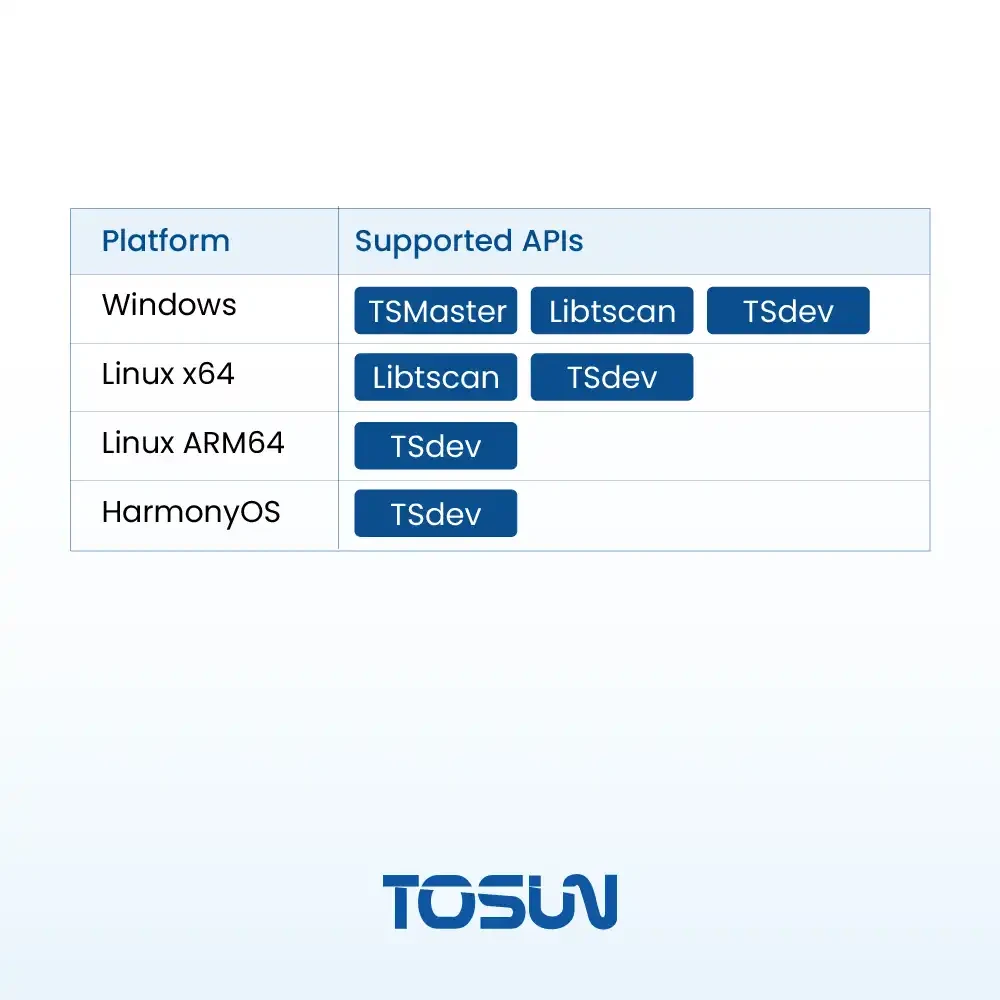

• Provide cross-platform secondary development interfaces to meet deep customization needs.

Typical application

• Vehicle-Level CAN (FD)/T1S Network Synchronized Data Acquisition and Analysis
• Simulation, Testing, and Diagnostics for Intelligent Domain Controllers (Cockpit, Intelligent Driving, etc.)
• Developing a Highly Reliable Automated Testing System and Durability Test Bench
• Vehicle diagnostics, ECU calibration, and software flashing

Technical Parameters

CAN

T1S
