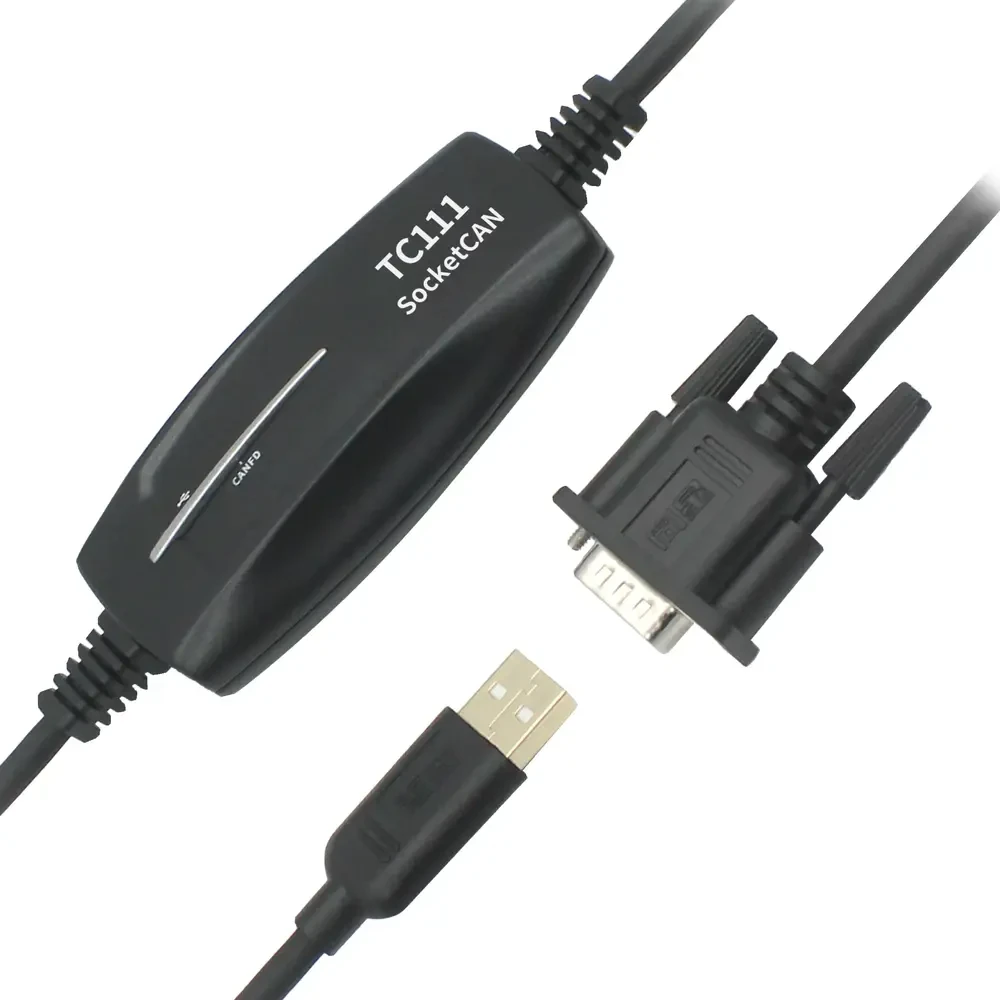

TC111 – 1 CAN/CAN FD Communication Tool
TC111 – 1 CAN/CAN FD Communication Tool
: Product Overview
Powered by a China-made main control chip, TC111 supports a fully domestic hardware configuration, making it suitable for a wide range of embedded and industrial communication applications.
Specifications
| Parameters | instructions |
| PC Interface | USB2.0 (HS) |
| Driver | Linux driver support |
| Cache | Hardware cache |
| Connector | Standard D-Sub, 9-pin |
| CAN | Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps |
| CAN FD | Supports ISO and non-ISO standard CAN FD, baud rates from 125Kbps to 5Mbps (8Mbps requires customization) |
| Electricity Supply | USB power supply |
| Power Wastage | 1.5W |
| ESD Protection | ±8 KV contact discharge, ±8 KV air charge |
| Sampling point | Adjustable from 70% ~ 90% |
| Sizes | 93.7 * 47.4mm |
| Weights | 104.8g |
| 工作湿度范围 | 10%~90% (no condensation) |
| Working environment | Keep away from corrosive gases |
CAN/CAN FD
| Parameters | instructions |
| Supported Protocols | CAN 2.0 A/B (ISO 11898-1), CAN FD (ISO and non-ISO) |
| CAN Baud Rate | 125Kbps ~ 1Mbps |
| CAN Frame Data Length | Up to 8 bytes |
| CAN FD Baud Rate | 125 Kbps ~ 5 Mbps (8 Mbps optional) |
| CAN FD Frame Data Length | Up to 64 bytes; supports BRS frames |
| Channel Number | 1 x CAN/CAN FD |
| Cache | Hardware cache |
其他信息
Download
Simplified Chinese
English version
Simplified Chinese
English version
Software package
Software package
Software package
FAQ
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
