TC114 - 4 CAN/CAN FD Communication Tool

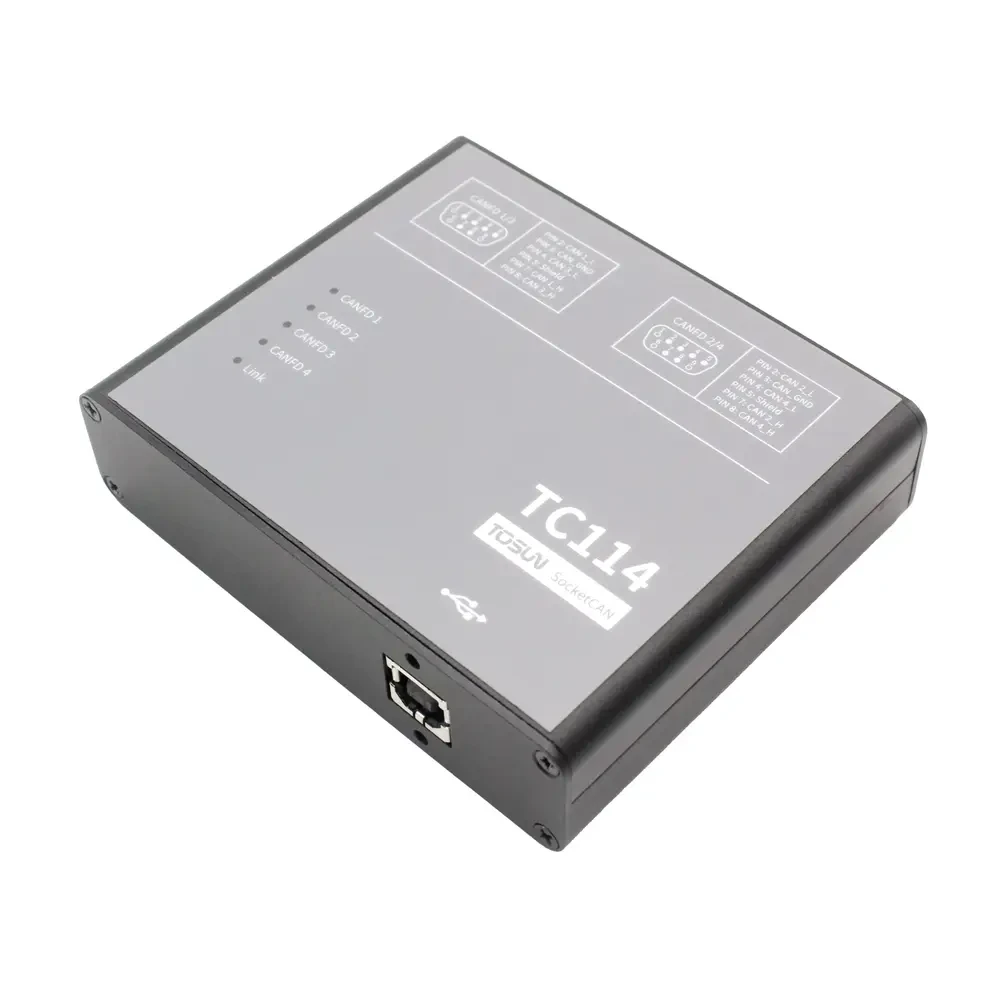

TC114 is a multi-channel CAN/CAN FD communication tool based on SocketCAN, developed by TOSUN. It supports four independent CAN/CAN FD interfaces, designed to make CAN communication as simple and efficient as network programming. This device supports CAN FD bus speeds up to 5Mbps (8Mbps requires customization), connects to the host via USB, is compatible with the SocketCAN framework, and provides comprehensive Linux drivers with excellent system compatibility.
TC114 - 4 CAN/CAN FD Communication Tool
: Product Overview
TC114 utilizes a domestically produced main control chip, supports fully domestic configurations, and is suitable for a wide range of embedded and industrial communication scenarios.
Specifications
| Parameters | instructions |
| PC Interface | USB 2.0 (High Speed) |
| Driver | Linux driver support |
| Cache | Hardware cache |
| Connector | Standard D-Sub, 9-pin |
| CAN | Supports CAN2.0A and B protocols, conforms to ISO11898-1 specification, baud rate 125Kbps-1Mbps |
| CAN FD | Supports ISO and non-ISO standard CAN FD, baud rates from 125Kbps to 5Mbps (8Mbps requires customization) |
| Electricity Supply | USB power supply |
| Power Wastage | 2W |
| ESD Protection | ±8 KV contact discharge, ±8 KV air charge |
| Sampling point | Adjustable from 70% ~ 90% |
| Sizes | 86.8 × 100 mm |
| Weights | 172.3 g |
| Operating Humidity Range | 10%~90% (no condensation) |
| Working environment | Keep away from corrosive gases |
CAN/CAN FD
| Parameters | instructions |
| Supported Protocols | CAN 2.0 A/B (ISO 11898-1), CAN FD (ISO and non-ISO) |
| CAN Baud Rate | 125 Kbps to 1 Mbps |
| CAN Frame Data Length | Up to 8 bytes |
| CAN FD Baud Rate | 125 Kbps ~ 5 Mbps (8 Mbps optional) |
| CAN FD Frame Data Length | Up to 64 bytes; supports BRS frames |
| Channel Number | 4 x CAN/CAN FD |
| Cache | Hardware cache |
Additional information
Download
User Manual
Simplified Chinese
User Manual
English version
Software package
Software package
Software package
FAQ
Please keep in mind
Caution! Electrostatic discharge (ESD) may damage or destroy components on the card. Please take precautions to avoid electrostatic discharge.
Before using the device, please carefully review the pinout information in the product manual. During operation of the device, be sure to connect the power cord correctly and avoid plugging and unplugging.
